Caterpillar

AP655F

Asphalt Paver

All asphalt pavers

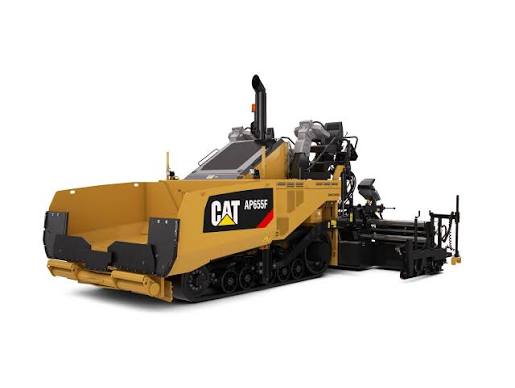

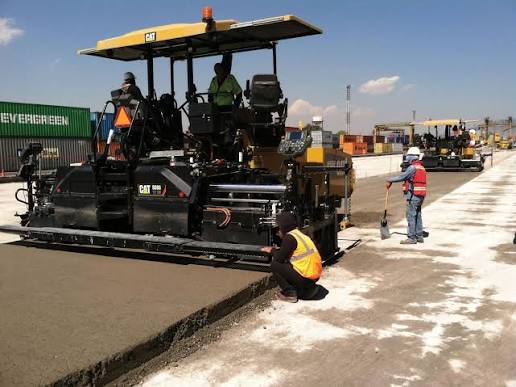

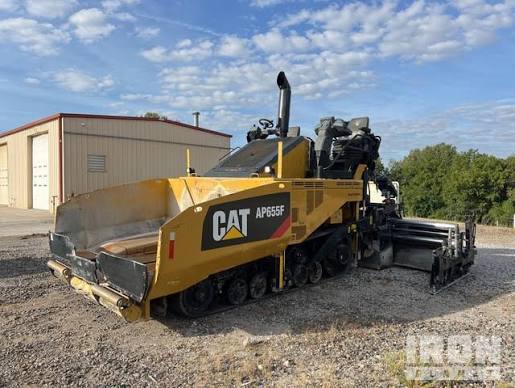

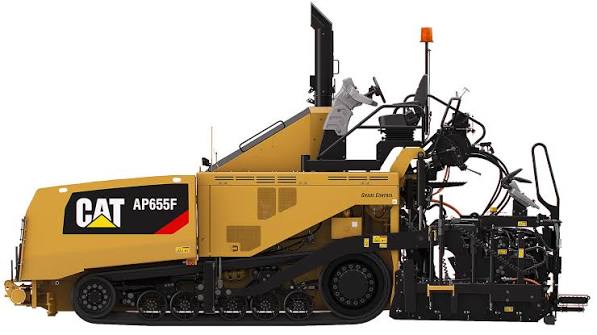

Caterpillar AP655F Asphalt Paver
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Maximum Paving Speed2.4 mph
Maximum Throughput Capacity1433 ton(US)/h
Maximum Travel Speed9.0 mph
Inside Turn Radius18 in

Engine

Engine specifications
Engine Power (1)173.0 hp
Engine Model (1)Cat C4.4

Weights

Weights specifications
Operating weight with SE60 FM42,150 lb
Operating weight with SE60 V41,890 lb
Operating weight with SE47 FM40,560 lb
Operating weight with SE50 V41,597 lb
Shipping Weight - Paver Only33,730 lb

Dimensions

Dimensions specifications
Transport Width118 in
Transport Height117 in
Overall Height148 in
Transport Length251 in
Operating Length261 in
Operating Width130 in
Paving Range with SE60 FM118 – 307 in
Paving Range with SE60 V118 – 301 in
Paving Range with SE47 FM96 – 246 in
Paving Range with SE50 V100 – 256 in

Service Refill Capacities

Service Refill Capacities specifications
Hydraulic Oil Tank58.0 gal
Fuel Tank Capacity73.0 gal
DEF Tank5.0 gal
Cooling System8.0 gal
Washdown Tank7.9 gal
