Caterpillar
Leeboy
8500D
Asphalt Paver
6 specifications
Caterpillar
AP800B
- Operating Weight w/ Screed
- 26,242 lb
- Paving Width - max
- 240 in
- Gross Power
- 102.0 hp
- Length w/ Screed
- 235 in
1 / 5

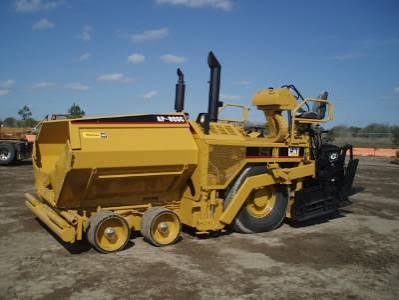

Image 1 of 5
Specifications
19 data points
Operating Specifications
| Operating Weight w/ Screed | 26,242 lb |
|---|---|
| Operating Weight w/o Screed | 23,501 lb |
| Fuel Capacity | 43.1 gal |
| Hydraulic System Fluid Capacity | 29.1 gal |
| Cooling System Fluid Capacity | 5.5 gal |
Engine
| Engine Model | T4.236 |
|---|---|
| Displacement | 236 in³ |
| Gross Power | 102.0 hp |
| Aspiration | turbocharged |
Dimensions
| Transport Width | 103 in |
|---|---|
| Transport Height | 106 in |
| Tire Size | front 22x12 rear 16.00x24 |
| Length w/ Screed | 235 in |
| Width w/ Hopper Open | 131 in |
Hopper/Paver
| Paving Width - max | 240 in |
|---|---|
| Paving Speed - max | 3.5 mph |
| Hopper Capacity | 8 lb |
| Travel Speed - max | 13.0 mph |
| Auger Diameter | 14 in |
