Caterpillar
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5

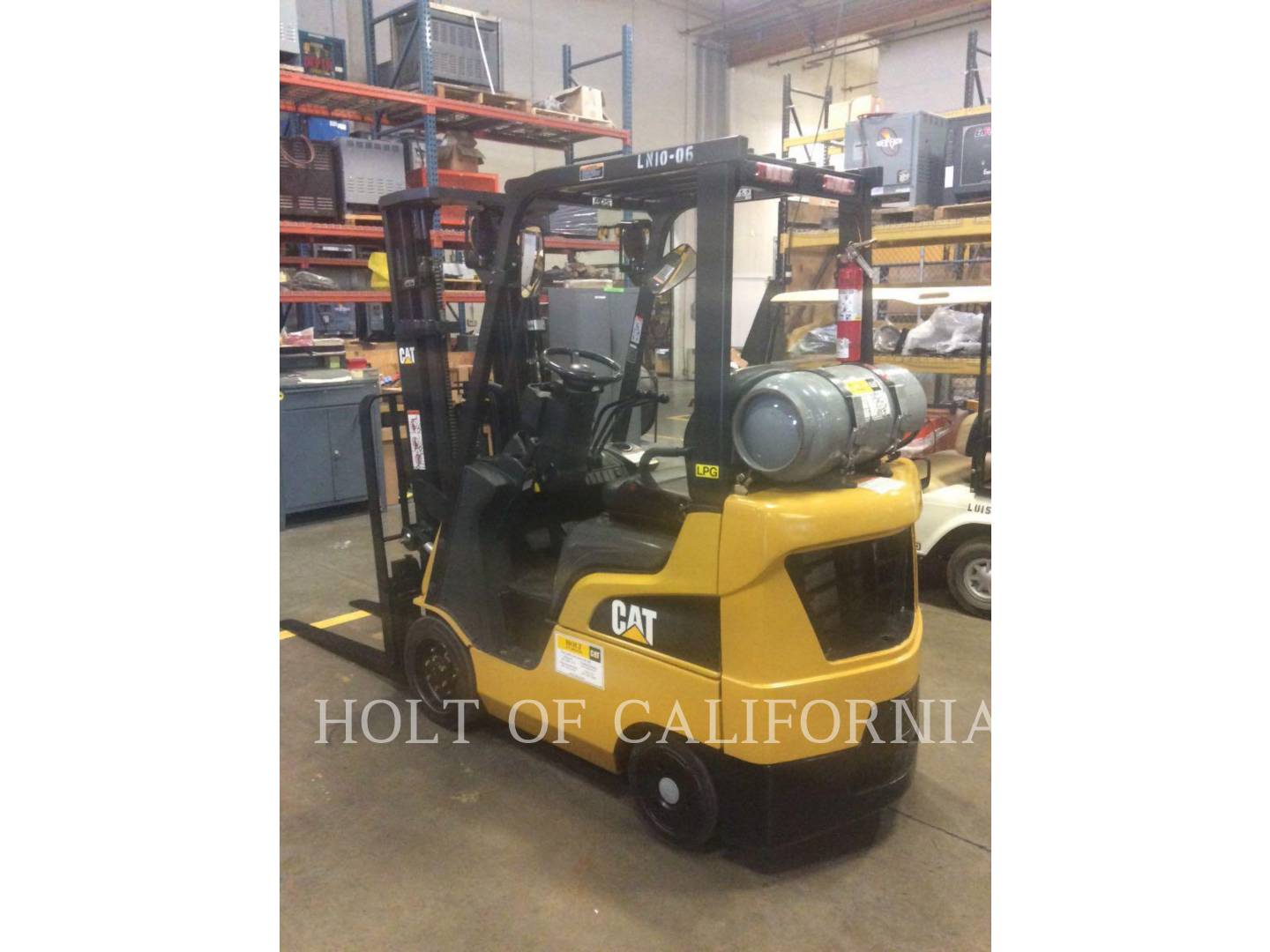

Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 6,449 lb |
|---|---|
| Max Speed | 10.2 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | cushion |
Engine
| Engine Model | K21 |
|---|---|
| Displacement | 128 in³ |
| Power Measured @ | 2,400 rpm |
| Torque Measured @ | 2,000 rpm |
| Power | 50.0 hp |
| Fuel Type | gas |
| Torque | 111 lb-ft |
Dimensions
| Ground Clearance | 3 in |
|---|---|
| Wheelbase | 48 in |
| Overall Width | 39 in |
| Turning Radius | 72 in |
| Overall Height - mast lowered | 84 in |
| Length to Fork Face | 84 in |
| Height to Top of Overhead Guard | 81 in |
| Max Fork Height | 132 in |
Mast
| Load Capacity | 3,500 lb |
|---|---|
| Load Center | 20 in |
| Lift Speed | 1.4 mph |
| Mast Tip Forward | 5 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 1.1 mph |
| Max Fork Spread | 32 in |
