Caterpillar

CB334E XW

Smooth Drum Roller

Operating Weight
9,259 lb
Max Speed
7.8 mph
Drum Width
55 in
Gross Power
45.8 hp
All smooth drum rollers

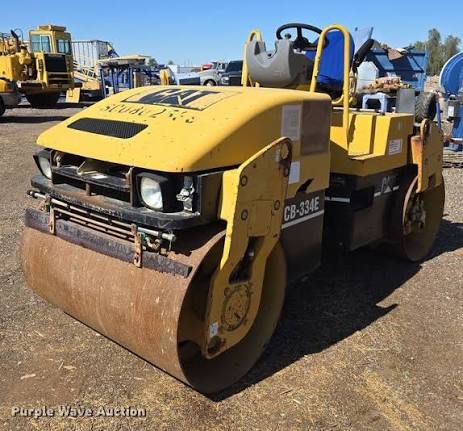

Caterpillar CB334E XW Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,259 lb
Max Speed7.8 mph
Fuel Capacity15.1 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity12.7 gal
Engine Oil Capacity2.9 gal
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine Model3024C
Displacement135 in³
Gross Power45.8 hp
Net Power44.3 hp

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab101 in
Wheelbase8 in
Overall Length10 in

Drum

Drum specifications
Drum Width55 in
Drum Diameter32 in
Vibration Frequency 153 vpm
Vibration Frequency 248 vpm
Static Linear Load18 lb-ft
Nominal Amplitude - Med0 in
Centrifugal Force - MEd6,632 lb
