Ingersoll Rand

DD24 Asphalt

Smooth Drum Roller

Operating Weight
5,725 lb
Max Speed
6.3 mph
Drum Width
47 in
All smooth drum rollers

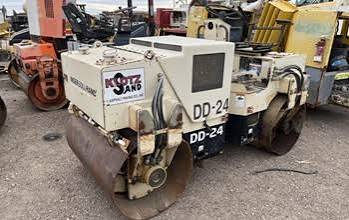

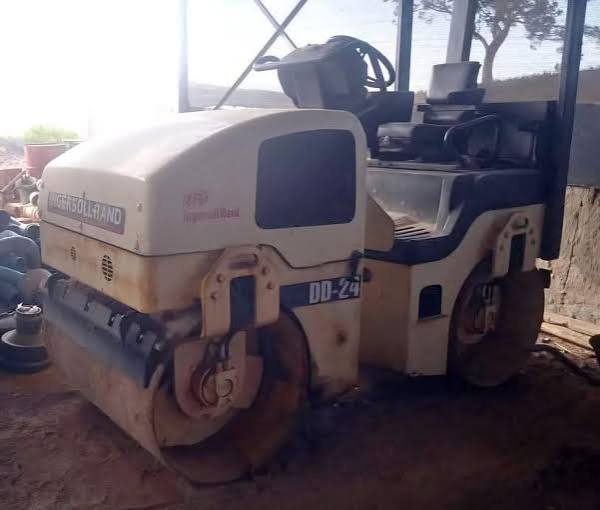

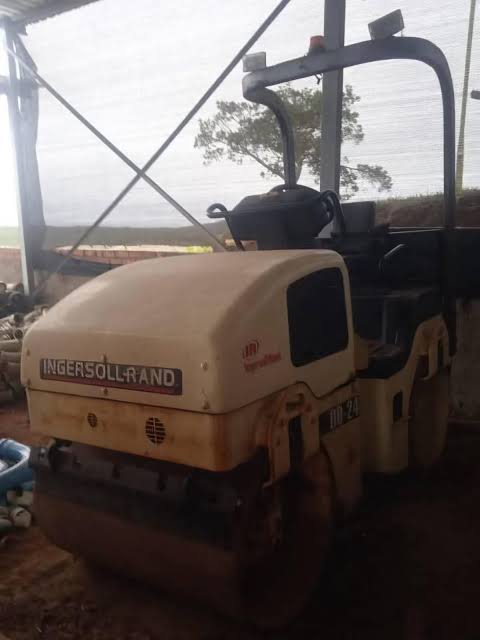

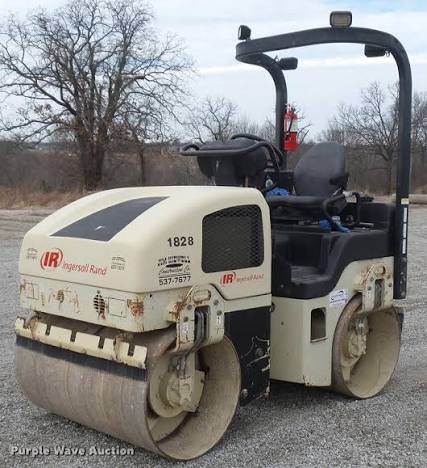

Ingersoll Rand DD24 Asphalt Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,725 lb
Max Speed6.3 mph
Fuel Capacity10.6 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity7.1 gal
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine ModelA1700
Net Power32.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab103 in
Wheelbase6 in
Overall Length8 in
Overall Width52 in

Drum

Drum specifications
Drum Width47 in
Drum Diameter28 in
Vibration Frequency 155 vpm
Centrifugal Force - High8,992 lb
Vibration Frequency 267 vpm
Centrifugal Force - Low6,295 lb
Nominal Amplitude - Med0 in
