Caterpillar

CB34B

Smooth Drum Roller

Operating Weight
8,157 lb
Drum Width
51 in
Gross Power
48.8 hp
All smooth drum rollers

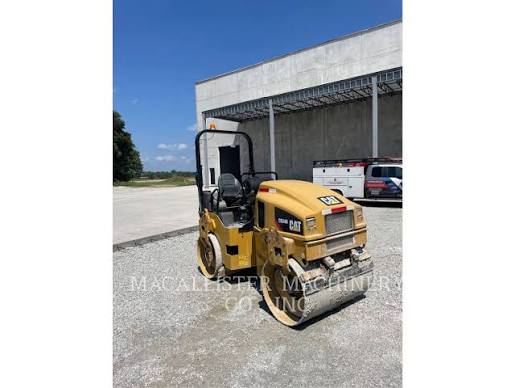

Caterpillar CB34B Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,157 lb
Fuel Capacity24.0 gal
Operating Width55 in
Travel Speed - Maximum8.0 mph
Standard Compaction Width51 in
Ground Clearance12 in
Curb Clearance20 in
Turning Radius - Inside Drum Edge116 in
Static Linear Load80 lb

Engine

Engine specifications
Engine ModelC2.2
Gross Power48.8 hp
MakeCat

Weights

Weights specifications
Operating Weight8,157 lb
Maximum Weight at Front Drum3,974 lb
Maximum Weight at Rear Drum4,180 lb

Dimensions

Dimensions specifications
Ground Clearance132 in
Wheelbase972 in
Overall Length114 in
Overall Width55 in
Turning Radius - Inside115 in
Wheel Base81 in
Drum Diameter32 in
Maximum Machine Height109 in

Transmission

Transmission specifications
Max Speed8.0 mph

General Specifications

General Specifications specifications
Engine typeCat Starting 2019 Model Year
DRUM WIDTH IN. (CM)51 (130) Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)115 (293) Starting 2019 Model Year
WIDTH IN. (CM)55 (140) Starting 2019 Model Year
FREQUENCY HZ48/55 Starting 2019 Model Year

Drum

Drum specifications
Drum Width51 in
Vibration Frequency—

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity24.0 gal
Water Spray Tank Capacity81.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Centrifugal Force per Drum - Maximum7,104 lb
Centrifugal Force per Drum - Minimum5,418 lb
Frequency48 – 55 vpm
