Caterpillar

CB225E

Smooth Drum Roller

Operating Weight
5,071 lb
Max Speed
6.3 mph
Gross Power
32.8 hp
All smooth drum rollers

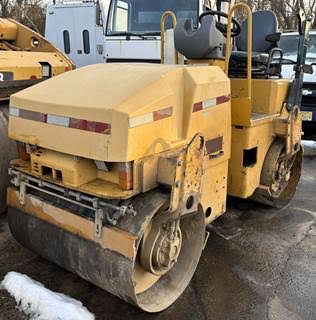

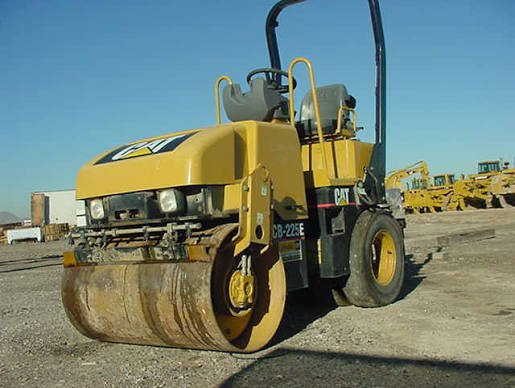

Caterpillar CB225E Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mustangcat.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,071 lb
Max Speed6.3 mph
Fuel Capacity12.3 gal
Operating Width51 in
Operating Voltage12 V
Hydraulic System Fluid Capacity8.0 gal
Engine Oil Capacity1.6 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model3013C
Displacement91 in³
Gross Power32.8 hp
Net Power30.9 hp
Aspirationnaturally aspirated
MakeCaterpillar

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab102 in
Wheelbase6 in
Overall Length8 in
Overall Width52 in
Turning Radius - Inside95 in

Tires & Wheels

Tires & Wheels specifications
Tires9.5/65-15

Drum

Drum specifications
Drum Diameter28 in
Vibration Frequency 163 vpm
Static Linear Load13 lb-ft
Nominal Amplitude - Med0 in
Centrifugal Force - MEd7,059 lb
