Caterpillar

CB434

Smooth Drum Roller

Operating Weight
13,371 lb
Max Speed
7.3 mph
Drum Width
56 in
Gross Power
80.0 hp
All smooth drum rollers

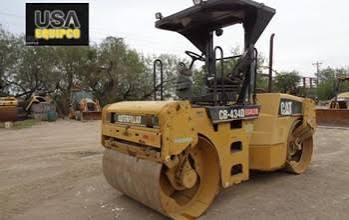

Caterpillar CB434 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,371 lb
Max Speed7.3 mph
Fuel Capacity38.1 gal
Operating Voltage24 V
Hydraulic System Fluid Capacity15.1 gal
Engine Oil Capacity2.0 gal
Alternator Supplied Amperage55 A
Cooling System Fluid Capacity4.5 gal

Engine

Engine specifications
Engine Model3114T
Displacement269 in³
Power Measured @2,200 rpm
Gross Power80.0 hp
Number of Cylinders4
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab90 in
Wheelbase9 in
Overall Length14 in
Overall Width64 in
Drum Diameter - Front44 in
Drum Diameter - Rear44 in

Drum

Drum specifications
Drum Width56 in
Drum Diameter43 in
Vibration Frequency 148 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High16,800 lb
Centrifugal Force - Low8,400 lb
Nominal Amplitude - Low0 in
Nominal Amplitude - Med0 in
Centrifugal Force - MEd13,282 lb
