Dynapac
Hamm
HD 10 VO
Smooth Drum Roller
40 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 8,300 lb |
|---|---|
| Operating weight ROPS | 7,600 lb |
| Max Speed | 5.0 mph |
| Fuel Capacity | 225.0 gal |
| Tire Size | 13.00-24 |
Engine
| Engine Model | BT3.3 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 80.5 hp |
| Engine Make | Cummins |
| Engine Type | Water cooled turbo Diesel |

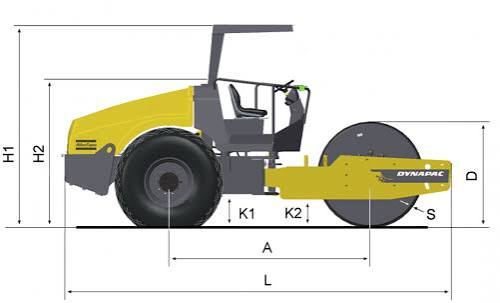

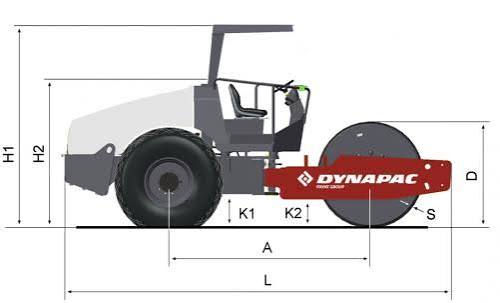

Dimensions
| Ground Clearance | 13 in |
|---|---|
| Wheelbase | 100 in |
| Overall Length | 188 in |
| Overall Width | 54 in |
| Height - Top of ROPS/FOPS | 111 in |
| Gradeability | 55.0 % |
| Height | 81 in |
| Curb clearance | 15 in |
Drum
| Drum Width | 66 in |
|---|---|
| Drum Diameter | 48 in |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 25,853 lb |
| Centrifugal Force - Low | 13,039 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
