Caterpillar

CB434D

Smooth Drum Roller

Operating Weight
16,689 lb
Max Speed
7.3 mph
Gross Power
83.0 hp
All smooth drum rollers

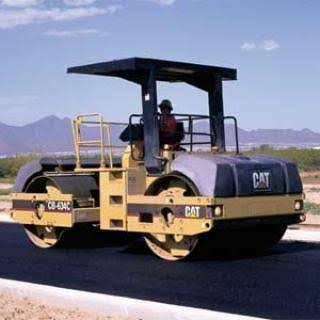

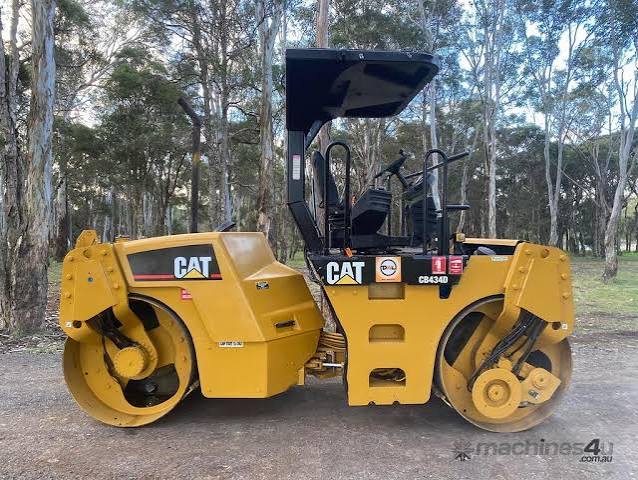

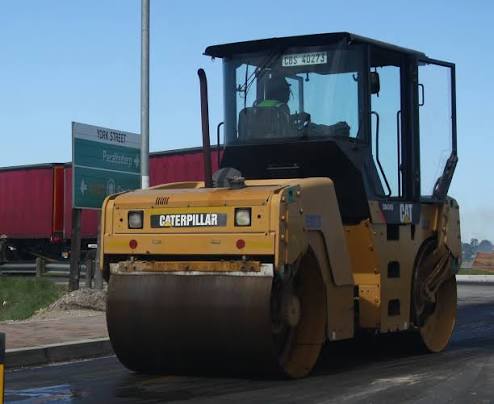

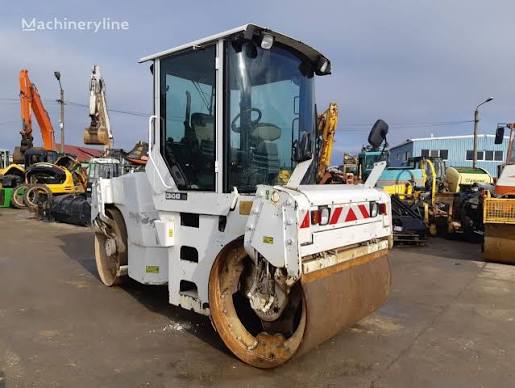

Caterpillar CB434D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,689 lb
Max Speed7.3 mph
Fuel Capacity34.9 gal
Operating Width66 in
Operating Voltage12 V
Hydraulic System Fluid Capacity13.3 gal
Engine Oil Capacity2.4 gal
Alternator Supplied Amperage80 A
Cooling System Fluid Capacity4.8 gal
Travel Speed - Maximum7.0 mph
Standard Compaction Width59 in
Ground Clearance11 in
Curb Clearance28 in
Turning Radius - Inside Drum Edge138 in
Static Linear Load138 lb

Engine

Engine specifications
Engine Model3054C
Displacement269 in³
Gross Power83.0 hp
Net Power79.2 hp
MakeCaterpillar

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab121 in
Wheelbase10 in
Overall Length165 in
Overall Width66 in
Wheel Base122 in
Drum Diameter42 in
Height - Steering Wheel89 in

Drum

Drum specifications
Drum Diameter43 in
Vibration Frequency 153 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High17,535 lb
Vibration Frequency 270 vpm
Static Linear Load30 lb-ft
Centrifugal Force - Low10,791 lb
Nominal Amplitude - Low0 in
Frequency3,200 – 4,200 vpm
Nominal Amplitude - Med0 in
Centrifugal Force - MEd12,140 lb
Nominal Amplitude - Med High0 in
Centrifugal Force - Med High14,837 lb
Centrifugal Force - Med Low9,442 lb
Nominal Amplitude - Med Low0 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity35.0 gal
Water Spray Tank Capacity211.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Centrifugal Force per Drum - Maximum17,550 lb
Centrifugal Force per Drum - Minimum6,525 lb
Nominal Amplitude - Low0 in
Frequency53 – 70 vpm
