Caterpillar

CB525

Smooth Drum Roller

Operating Weight
29,101 lb
Max Speed
8.1 mph
Drum Width
67 in
Gross Power
83.0 hp
All smooth drum rollers

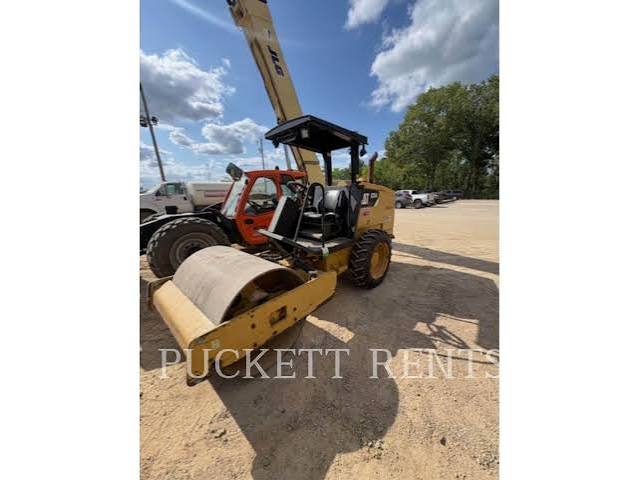

Caterpillar CB525 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,101 lb
Max Speed8.1 mph
Fuel Capacity26.5 gal
Hydraulic System Fluid Capacity25.1 gal
Engine Oil Capacity3.2 gal

Engine

Engine specifications
Engine ModelF5L 912
Displacement287 in³
Gross Power83.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab119 in
Overall Length16 in
Overall Width78 in

Tires & Wheels

Tires & Wheels specifications
Tires17/80 R 24

Drum

Drum specifications
Drum Width67 in
Drum Diameter53 in
Vibration Frequency 142 vpm
Centrifugal Force - High23,260 lb
