Caterpillar

CB534

Smooth Drum Roller

Operating Weight
20,100 lb
Max Speed
6.9 mph
Drum Width
67 in
Gross Power
125.0 hp
All smooth drum rollers

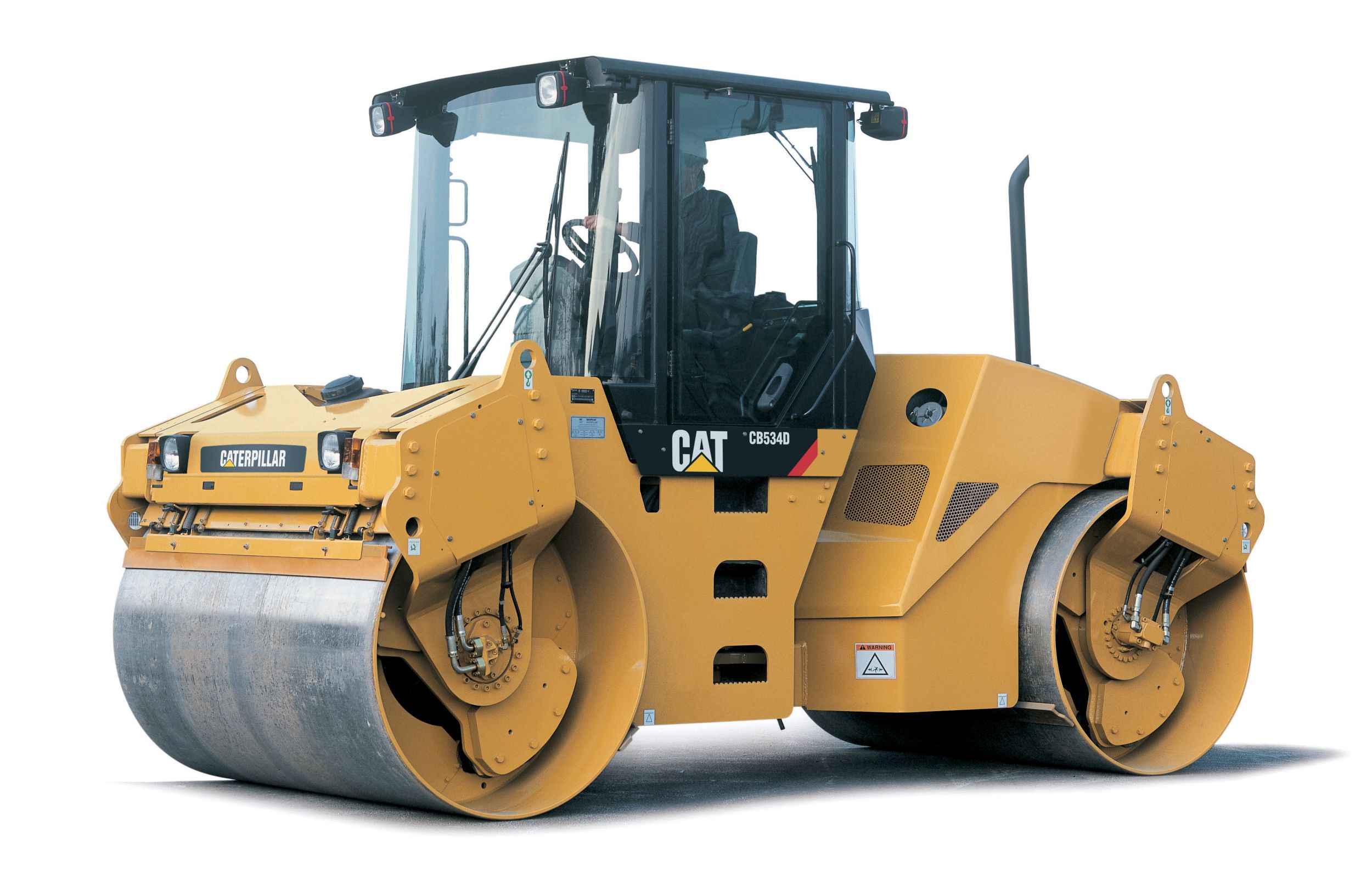

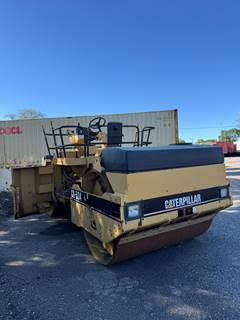

Caterpillar CB534 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,100 lb
Max Speed6.9 mph
Fuel Capacity50.2 gal
Hydraulic System Fluid Capacity23.8 gal
Engine Oil Capacity5.1 gal

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Gross Power125.0 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab93 in
Wheelbase10 in
Overall Length16 in
Overall Width73 in

Drum

Drum specifications
Drum Width67 in
Drum Diameter51 in
Vibration Frequency 142 vpm
Centrifugal Force - High26,019 lb
