Hypac

C330B

Smooth Drum Roller

Max Speed
11.0 mph
Drum Width
42 in
Gross Power
47.0 hp
All smooth drum rollers

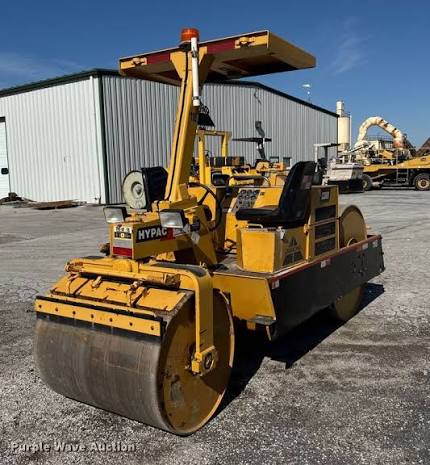

Hypac C330B Smooth Drum Roller
1 / 5
Image 1 of 5
Image: bid.rollerauction.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Max Speed11.0 mph
Fuel Capacity17.0 gal
Operating Width52 in
Operating Voltage12 V
Hydraulic System Fluid Capacity15.0 gal
Cooling System Fluid Capacity4.8 gal
Spray Water Capacity100.2 gal

Engine

Engine specifications
Engine ModelA2300
Power Measured @2,600 rpm
Gross Power47.0 hp
Number of Cylinders4

Weights

Weights specifications
Operating Weight - standard9,380 lb
Operating Weight - max ballast12,080 lb
Max Static Linear Load - Drive Drum14 lb-ft
Max Static Linear Load - guide drum10 lb-ft

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase108 in
Overall Length13 in
Overall Width85 in
Height - Top of ROPS/FOPS104 in
Height71 in
Drum Diameter - Front35 in
Drum Diameter - Rear48 in

Drum

Drum specifications
Drum Width42 in

Comparable machines

Other smooth drum rollers in a similar weight class.
