Caterpillar

CB634D

Smooth Drum Roller

Operating Weight
28,219 lb
Max Speed
7.6 mph
Gross Power
144.9 hp
All smooth drum rollers

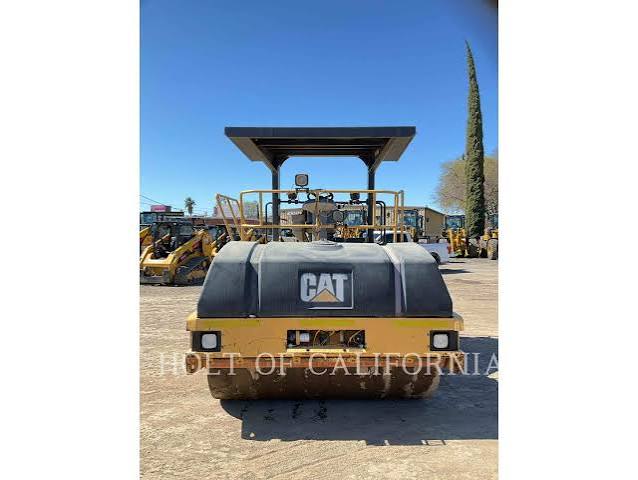

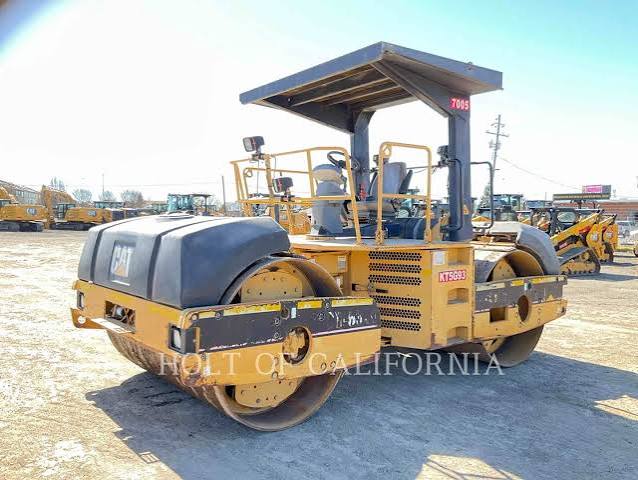

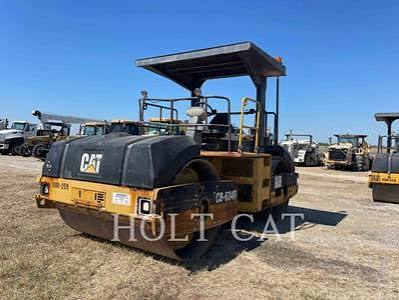

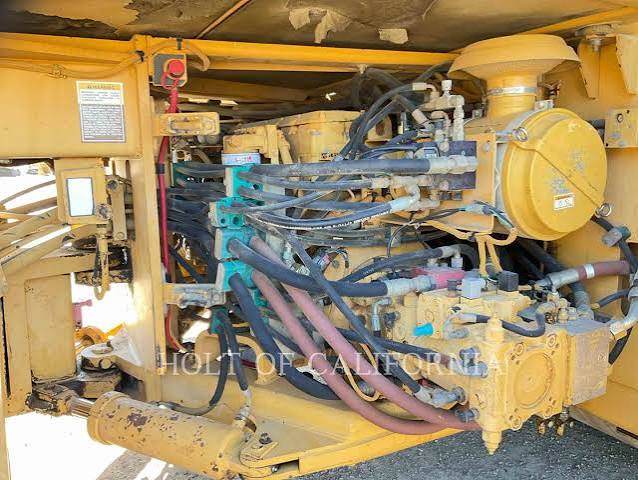

Caterpillar CB634D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,219 lb
Max Speed7.6 mph
Fuel Capacity66.1 gal
Operating Width91 in
Operating Voltage12 V
Hydraulic System Fluid Capacity15.9 gal
Engine Oil Capacity4.5 gal
Alternator Supplied Amperage105 A
Cooling System Fluid Capacity8.2 gal

Engine

Engine specifications
Engine Model3116T
Displacement403 in³
Gross Power144.9 hp
Net Power138.2 hp
Aspirationturbocharged
MakeCaterpillar

Dimensions

Dimensions specifications
Height - Top of Cab124 in
Wheelbase10 in
Overall Length16 in
Overall Width91 in
Turning Radius - Inside170 in

Drum

Drum specifications
Drum Diameter51 in
Vibration Frequency 144 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High35,745 lb
Static Linear Load36 lb-ft
Vibration Frequency2,640 vpm
Centrifugal Force - Low13,039 lb
Nominal Amplitude - Low0 in
Nominal Amplitude - Med0 in
Centrifugal Force - MEd24,954 lb
Nominal Amplitude - Med High0 in
Centrifugal Force - Med High31,024 lb
Centrifugal Force - Med Low19,109 lb
Nominal Amplitude - Med Low0 in
