Caterpillar
BOMAG
BW 5A S (4-6ton)

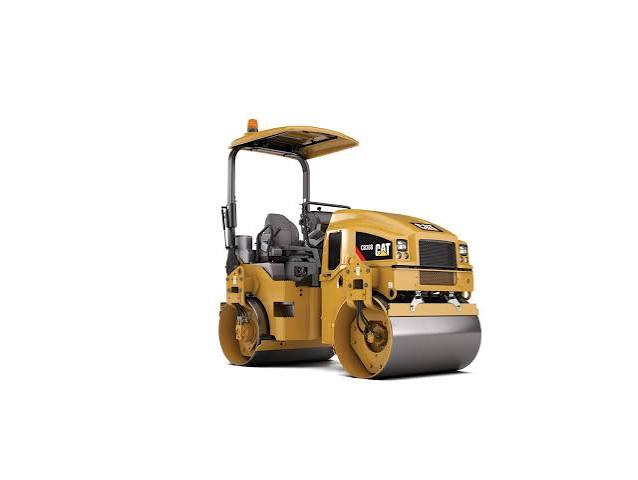

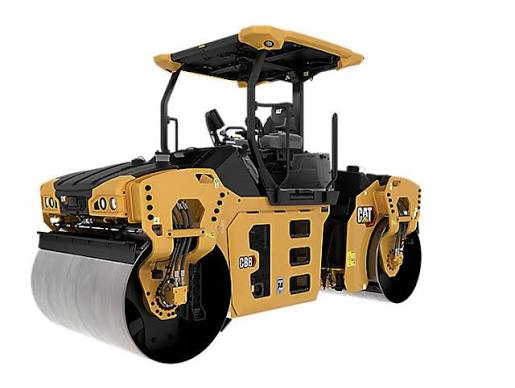

Smooth Drum Roller
22 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Travel Speed - Maximum | 7.5 mph |
|---|---|
| Standard Compaction Width | 67 in |
| Static Linear Load | 143 lb |
| Maximum Compaction Width | 73 in |
Engine
| Engine Model | Cat C3.4B with ACERT Technology |
|---|---|
| Gross Power | 100.0 hp |
Weights
| Maximum Operating Weight with Cab | 20,878 lb |
|---|---|
| Standard Operating Weight with Cab | 19,224 lb |
| Maximum Operating Weight with ROPS | 20,343 lb |
| Standard Operating Weight with ROPS | 18,783 lb |
Dimensions
| Overall Length | 178 in |
|---|---|
| Overall Width | 73 in |
| Height - Top of ROPS/FOPS | 117 in |
| Wheel Base | 131 in |
| Drum Diameter | 43 in |
General Specifications
| Engine type | Cat — Starting 2019 Model Year |
|---|---|
| DRUM WIDTH IN. (CM) | 67 (170 — Starting 2019 Model Year |
| INSIDE TURN RADIUS IN. (CM) | 169 (430) — Starting 2019 Model Year |
| WIDTH IN. (CM) | 78 (197) — Starting 2024 Model Year |
| FREQUENCY HZ | 53.3/63.3 — Starting 2019 Model Year |
Drum
| Drum Width | 67 in |
|---|
Service Refill Capacities
| Fuel Tank Capacity | 55.0 gal |
|---|---|
| Water Spray Tank Capacity | 196.0 gal |
Vibratory System
| Nominal Amplitude - High | 0 in |
|---|---|
| Centrifugal Force per Drum - Maximum | 17,603 lb |
| Centrifugal Force per Drum - Minimum | 6,789 lb |
| Vibration Selection | Independent per drum front only rear only both |
| Nominal Amplitude - Low | 0 in |
