Hamm

H7i VIO

Smooth Drum Roller

Drum Width
66 in
All smooth drum rollers

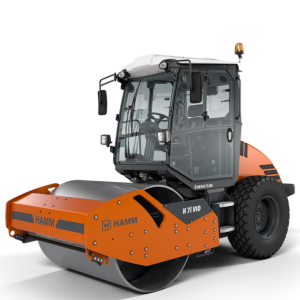

Hamm H7i VIO Smooth Drum Roller
1 / 5
Image 1 of 5
Image: cramo.se

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating weight ROPS13,459 lb
Operating weight Cabin13,944 lb
Fuel Capacity32.5 gal
Max Weight15,058 lb
Axle load - front8,301 lb
Axle load - rear5,644 lb

Engine

Engine specifications
Engine ModelV3307-CR-T
Power Measured @2,200 rpm
Number of Cylinders4
Engine MakeKubota
Emissions CertificationEU Stage IIIB / EPA Tier 4
Engine Power - ISO 1439673.3 hp
Engine power@SAEJ134973.3 hp
Exhaust Gas Recirculation (EGR)DOC-DPF

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab115 in
Wheelbase91 in
Overall Length174 in
Turning Radius - Inside131 in
Loadover height115 in
Width over cab73 in
Angle of driving slope-Rear42 °
Angle of driving slope-Front38 °

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 136 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High27,651 lb
Static Linear Load10 lb-ft
Drum thickness1 in
Drum Typesmooth
Oscillation force - front27,651 lb
Oscillation frequency - front36 vpm
Tangential amplitude - front5 in

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 14.9-24 8 TL
Speed - working gear6.0 mph
Speed - transportation gear12.0 mph
