Caterpillar
BOMAG
BW 5A S (4-6ton)

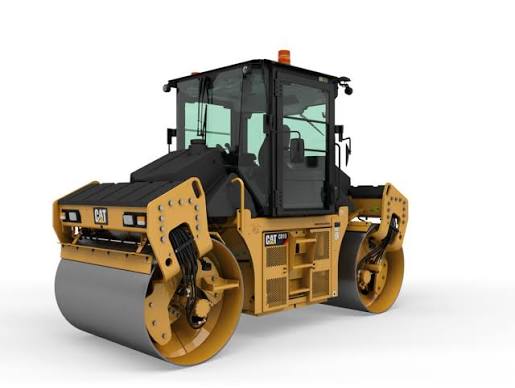

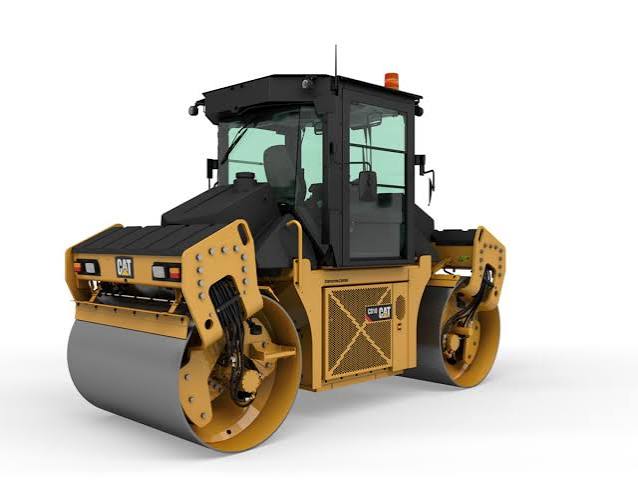

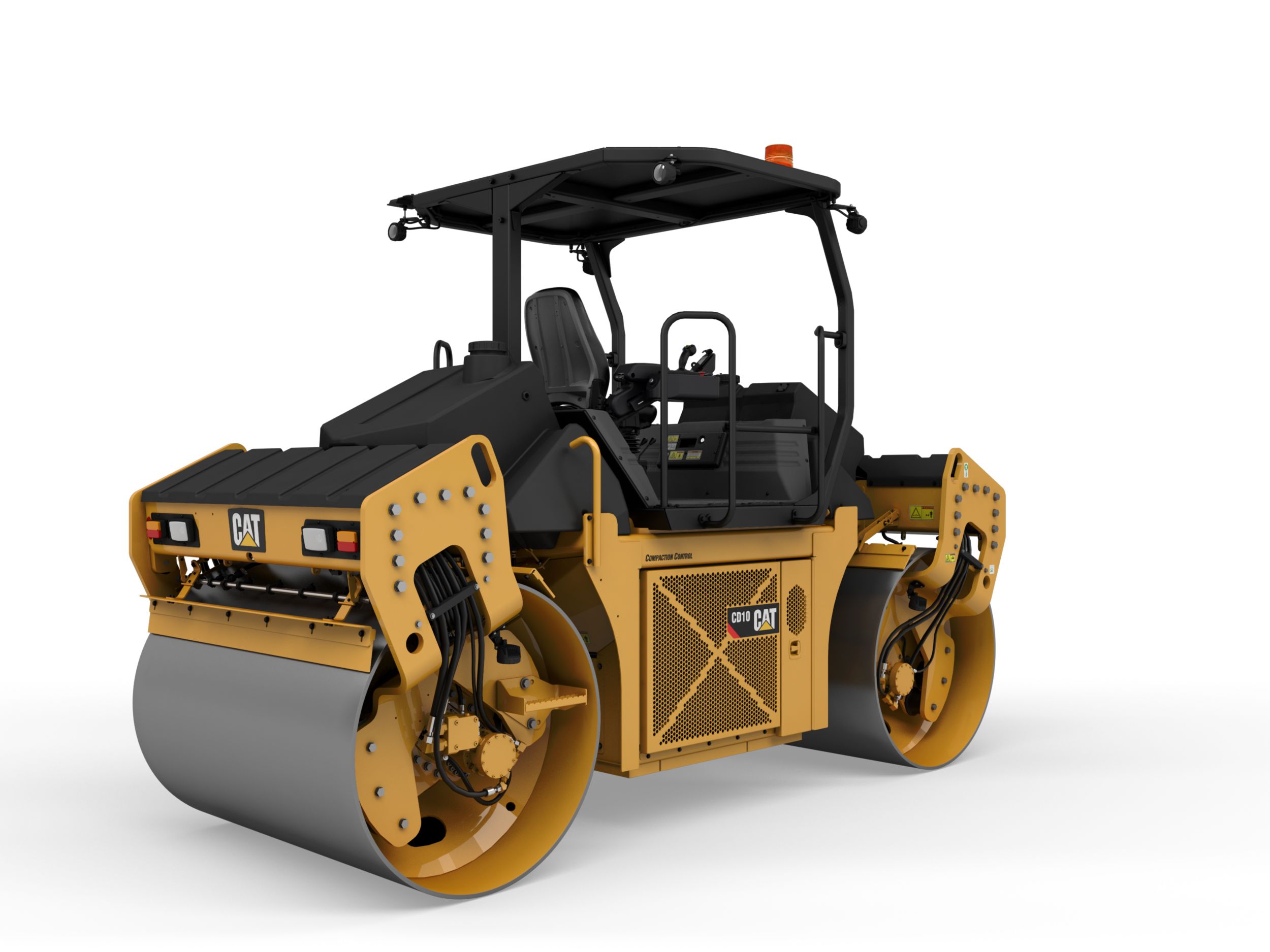

Smooth Drum Roller
22 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Travel Speed - Maximum | 7.5 mph |
|---|---|
| Standard Compaction Width | 67 in |
| Static Linear Load | 148 lb |
| Maximum Compaction Width | 118 in |
| Drum Offset | 51 in |
Engine
| Engine Model | Cat C3.4B with ACERT Technology |
|---|---|
| Gross Power | 101.9 hp |
Weights
| Maximum Operating Weight with Cab | 21,475 lb |
|---|---|
| Standard Operating Weight with Cab | 19,908 lb |
| Maximum Operating Weight with ROPS | 20,880 lb |
| Standard Operating Weight with ROPS | 19,335 lb |
Dimensions
| Overall Length | 169 in |
|---|---|
| Overall Width | 74 in |
| Height - Top of ROPS/FOPS | 115 in |
| Wheel Base | 124 in |
| Drum Diameter | 44 in |
Drum
| Drum Width | 67 in |
|---|
Service Refill Capacities
| Fuel Tank Capacity | 50.0 gal |
|---|---|
| Water Spray Tank Capacity | 198.0 gal |
Vibratory System
| Nominal Amplitude - High | 0 in |
|---|---|
| Centrifugal Force per Drum - Maximum | 28,977 lb |
| Centrifugal Force per Drum - Minimum | 6,092 lb |
| Vibration Selection | Independent per drum front only rear only both |
| Nominal Amplitude - Low | 0 in |
