Caterpillar

CD44B - Split Drum

Smooth Drum Roller

Drum Width
59 in
Gross Power
102.0 hp
All smooth drum rollers

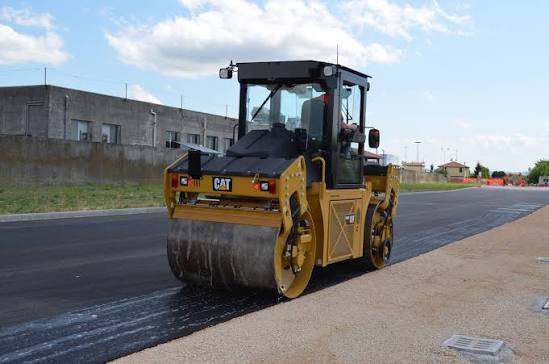

Caterpillar CD44B - Split Drum Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Travel Speed - Maximum7.5 mph
Standard Compaction Width59 in
Ground Clearance11 in
Curb Clearance26 in
Turning Radius - Inside Drum Edge115 in
Static Linear Load156 lb
Maximum Compaction Width111 in

Engine

Engine specifications
Engine ModelCat C3.4B with ACERT Technology
Gross Power102.0 hp
Stroke4 in
Bore4 in

Weights

Weights specifications
Operating Weight - With ROPS/FOPS18,056 lb
Operating Weight - At Rear Drum with ROPS/FOPS8,995 lb
Operating Weight - At Front Drum with ROPS/FOPS9,061 lb
Operating Weight - With Cab18,497 lb
Maximum Weight at Front Drum9,215 lb
Maximum Weight at Rear Drum9,281 lb

Dimensions

Dimensions specifications
Overall Length167 in
Overall Width66 in
Height - Top of ROPS/FOPS116 in
Wheel Base124 in
Drum Diameter43 in
Compaction Width59 in

Drum

Drum specifications
Drum Width59 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity36.0 gal
Water Spray Tank Capacity159.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Centrifugal Force per Drum - Maximum17,602 lb
Centrifugal Force per Drum - Minimum13,309 lb
Vibration SelectionIndependent per drum front only rear only both
Nominal Amplitude - Low0 in
Drum Diameter44 in
Eccentric Weight DriveHydraulic direct auto reversing
