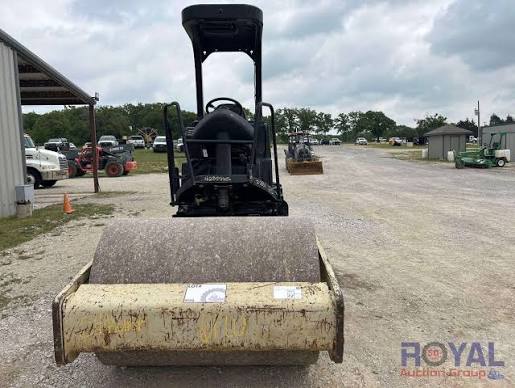

Ingersoll Rand
Hamm
HD 10 VO
Smooth Drum Roller
40 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 11,350 lb |
|---|---|
| Max Speed | 4.9 mph |
| Fuel Capacity | 26.0 gal |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 25.0 gal |
| Alternator Supplied Amperage | 60 A |
Engine
| Engine Model | 4BT 3.3 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Net Power | 80.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 114 in |
| Wheelbase | 8 in |
| Width Over Tires | 64 in |
| Overall Length w/o Blade | 159 in |
Tires & Wheels
| Tires | 12.4x24 4PR R1 Lug |
|---|
Drum
| Drum Width | 54 in |
|---|---|
| Drum Diameter | 39 in |
| Vibration Frequency 1 | 32 vpm |
| Centrifugal Force - Low | 22,256 lb |
| Nominal Amplitude - Low | 0 in |
| Pad Height | 3 in |
| Pad Surface Area | 21 in³ |
| Number of Pads | 63 |
