Hamm

HD 13 VO

Smooth Drum Roller

Operating Weight
11,530 lb
Max Speed
6.9 mph
Drum Width
51 in
Gross Power
46.4 hp
All smooth drum rollers

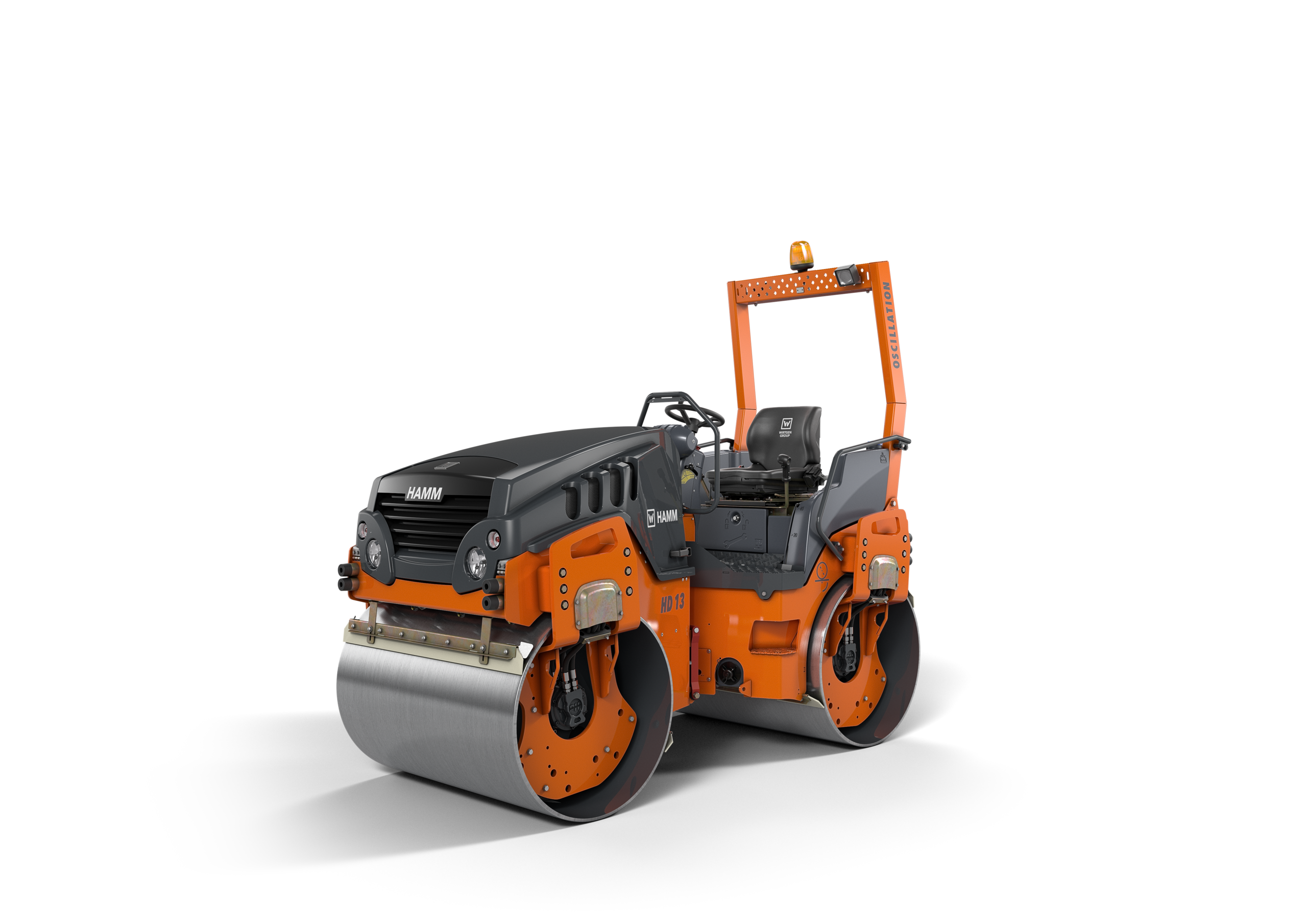

Hamm HD 13 VO Smooth Drum Roller
1 / 5
Image 1 of 5
Image: wirtgen-group.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,530 lb
Operating weight ROPS8,852 lb
Max Speed6.9 mph
Fuel Capacity19.3 gal
Water Spray Tank Fluid Capacity75.3 gal
Oscillating angle8 °

Engine

Engine specifications
Engine ModelV2203
Power Measured @2,700 rpm
Gross Power46.4 hp
Net Power46.4 hp
Number of Cylinders3
Engine MakeKUBOTA
Emission Tier LevelEU Stage IIIA

Dimensions

Dimensions specifications
Ground Clearance28 in
Height - Top of Cab108 in
Wheelbase77 in
Overall Length114 in
Overall Width56 in
Height - Top of ROPS/FOPS102 in
Turning Radius - Inside107 in

Drum

Drum specifications
Drum Width51 in
Drum Diameter36 in
Vibration Frequency 160 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High14,388 lb
Vibration Frequency 251 vpm
Static Linear Load7 lb-ft
Centrifugal Force - Low8,768 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
Oscillation force , rear -116,186 lb
Oscillation frequency , rear - 139 vpm
Tangential amplitude , rear - 10 in
Oscillation force , rear -29,667 lb
Oscillation frequency , rear - 230 vpm
Tangential amplitude , rear - 20 in
