Caterpillar

CD54B - Solid Drum

Smooth Drum Roller

Drum Width
67 in
Gross Power
102.0 hp
All smooth drum rollers

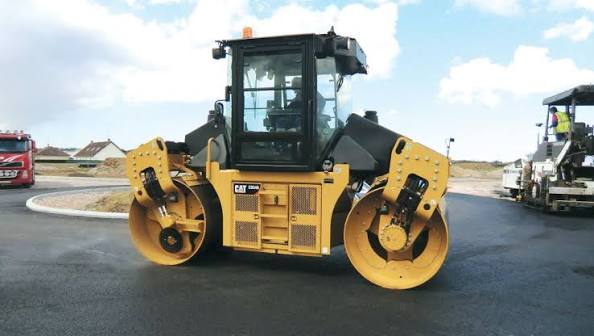

Caterpillar CD54B - Solid Drum Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Travel Speed - Maximum7.5 mph
Standard Compaction Width67 in
Ground Clearance11 in
Curb Clearance31 in
Turning Radius - Inside Drum Edge112 in
Static Linear Load149 lb
Maximum Compaction Width118 in

Engine

Engine specifications
Engine ModelCat C3.4B with ACERT Technology
Gross Power102.0 hp
Stroke4 in
Bore4 in

Weights

Weights specifications
Operating Weight - With ROPS/FOPS15,873 lb
Operating Weight - At Rear Drum with ROPS/FOPS9,678 lb
Operating Weight - At Front Drum with ROPS/FOPS9,656 lb
Operating Weight - With Cab19,908 lb
Maximum Weight at Front Drum9,987 lb
Maximum Weight at Rear Drum9,921 lb

Dimensions

Dimensions specifications
Overall Length167 in
Overall Width66 in
Height - Top of ROPS/FOPS116 in
Wheel Base124 in
Drum Diameter47 in
Compaction Width67 in

Drum

Drum specifications
Drum Width67 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity50.0 gal
Water Spray Tank Capacity198.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Centrifugal Force per Drum - Maximum19,491 lb
Centrifugal Force per Drum - Minimum16,973 lb
Vibration SelectionIndependent per drum front only rear only both
Nominal Amplitude - Low0 in
Drum Diameter47 in
Eccentric Weight DriveHydraulic direct auto reversing
