Caterpillar
BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5

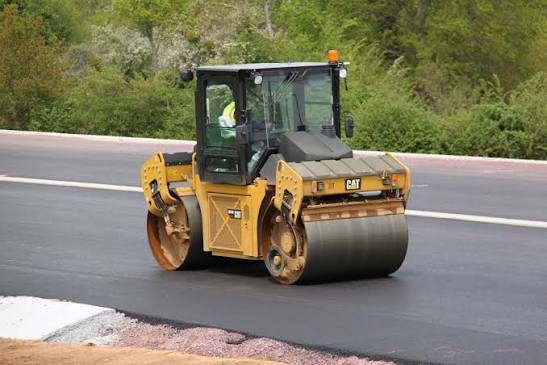

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Travel Speed - Maximum | 7.5 mph |
|---|---|
| Standard Compaction Width | 67 in |
| Ground Clearance | 11 in |
| Curb Clearance | 31 in |
| Turning Radius - Inside Drum Edge | 115 in |
| Static Linear Load | 165 lb |
| Maximum Compaction Width | 118 in |
Engine
| Engine Model | Cat C3.4B with ACERT Technology |
|---|---|
| Gross Power | 102.0 hp |
| Stroke | 4 in |
| Bore | 4 in |
Weights
| Operating Weight - With ROPS/FOPS | 21,738 lb |
|---|---|
| Operating Weight - At Rear Drum with ROPS/FOPS | 10,736 lb |
| Operating Weight - At Front Drum with ROPS/FOPS | 11,001 lb |
| Operating Weight - With Cab | 22,311 lb |
| Maximum Weight at Front Drum | 11,045 lb |
| Maximum Weight at Rear Drum | 11,265 lb |
Dimensions
| Overall Length | 170 in |
|---|---|
| Overall Width | 74 in |
| Height - Top of ROPS/FOPS | 118 in |
| Wheel Base | 124 in |
| Drum Diameter | 47 in |
| Compaction Width | 67 in |
Drum
| Drum Width | 67 in |
|---|
Service Refill Capacities
| Fuel Tank Capacity | 50.0 gal |
|---|---|
| Water Spray Tank Capacity | 198.0 gal |
Vibratory System
| Nominal Amplitude - High | 0 in |
|---|---|
| Centrifugal Force per Drum - Maximum | 17,602 lb |
| Centrifugal Force per Drum - Minimum | 16,973 lb |
| Vibration Selection | Independent per drum front only rear only both |
| Nominal Amplitude - Low | 0 in |
| Drum Diameter | 47 in |
| Eccentric Weight Drive | Hydraulic direct auto reversing |
