Caterpillar

CD8 - Split Drum

Smooth Drum Roller

Drum Width
59 in
Gross Power
100.0 hp
All smooth drum rollers

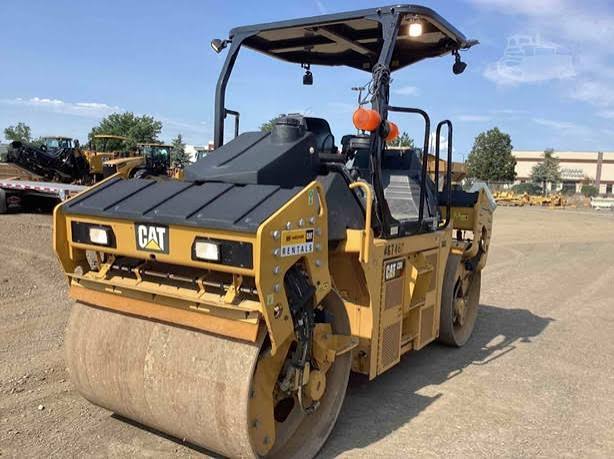

Caterpillar CD8 - Split Drum Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Travel Speed - Maximum7.5 mph
Standard Compaction Width59 in
Static Linear Load146 lb
Maximum Compaction Width111 in
Drum Offset51 in

Engine

Engine specifications
Engine ModelCat C3.4B with ACERT Technology
Gross Power100.0 hp

Weights

Weights specifications
Maximum Operating Weight with Cab20,834 lb
Standard Operating Weight with Cab18,497 lb

Dimensions

Dimensions specifications
Overall Length167 in
Overall Width66 in
Height - Top of ROPS/FOPS115 in
Wheel Base124 in

Drum

Drum specifications
Drum Width59 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity36.0 gal
Water Spray Tank Capacity159.0 gal

Vibratory System

Vibratory System specifications
Centrifugal Force per Drum - Maximum16,590 lb
Centrifugal Force per Drum - Minimum13,309 lb
Vibration SelectionIndependent per drum front only rear only both
