Caterpillar

D10

Crawler Dozer

Operating Weight
171,674 lb
Max Speed - Forward
7.3 mph
Gross Power
700.0 hp
All crawler dozers

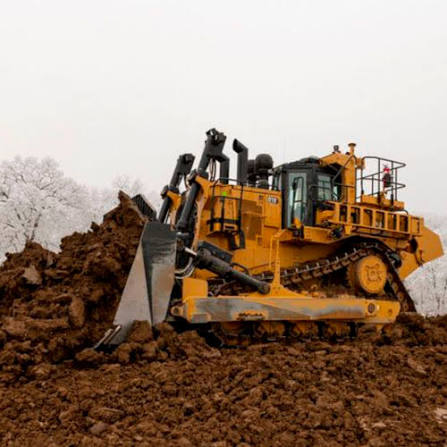

Caterpillar D10 Crawler Dozer
1 / 5
Image 1 of 5
Image: cat.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight171,674 lb
Fuel Capacity382.0 gal

Engine

Engine specifications
Engine ModelD348
Displacement1,788 in³
Gross Power700.0 hp

Dimensions

Dimensions specifications
Ground Clearance28 in
Height - Top of Cab179 in
Length of Track on Ground155 in
Width Over Tracks144 in
Length w/ Blade299 in
Length w/o Blade234 in

Transmission

Transmission specifications
Max Speed - Forward7.3 mph
Max Speed - Reverse8.6 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure20 psi
Track Gauge115 in
Number of Track Rollers per Side8
Standard Shoe Size28 in
Ground Contact Area8,618 in³

General Specifications

General Specifications specifications
Weight lbs (kg)154,888 (70,256) Starting 2024 Model Year
Engine typeCat C27 Starting 2024 Model Year
Engine Power HP (KW)620 (462) Starting 2024 Model Year

Standard Blade

Standard Blade specifications
Width138 in
