Caterpillar

D10R

Crawler Dozer

Operating Weight
144,190 lb
Max Speed - Forward
7.7 mph
Gross Power
613.0 hp
Net Power
570.0 hp
All crawler dozers

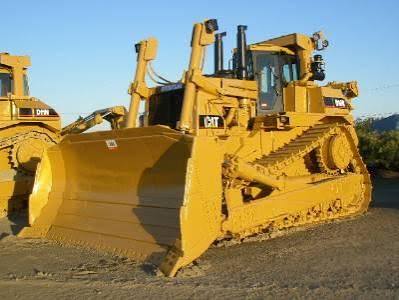

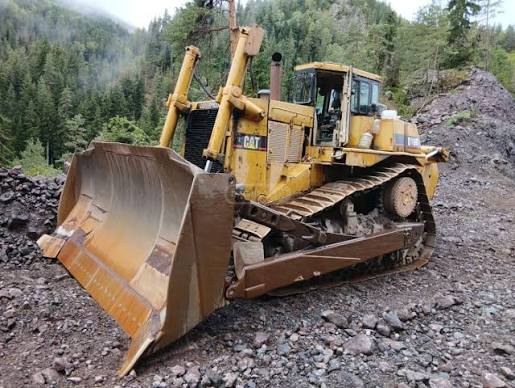

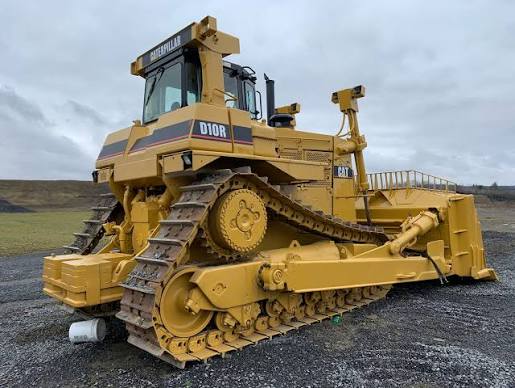

Caterpillar D10R Crawler Dozer
1 / 5
Image 1 of 5
Image: plantandequipment.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight144,190 lb
Fuel Capacity293.0 gal
Cooling System Fluid Capacity34.9 gal
Final Drives Fluid Capacity6.1 gal
Engine Oil Capacity15.9 gal
Hydraulic Fluid Capacity28.6 gal
Operating Voltage24 V
Alternator Supplied Amperage75 A

Engine

Engine specifications
Engine Model3412E
Displacement1,649 in³
Power Measured @1,900 rpm
Gross Power613.0 hp
Net Power570.0 hp
Number of Cylinders12
AspirationTurbocharged and Aftercooled

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity108.0 gal/min
Relief Valve Pressure2,700 psi

Dimensions

Dimensions specifications
Ground Clearance25 in
Height - Top of Cab162 in
Length of Track on Ground154 in
Width Over Tracks125 in
Length w/ Blade306 in
Length w/o Blade210 in

Transmission

Transmission specifications
Max Speed - Forward7.7 mph
Max Speed - Reverse9.7 mph
Transmission TypePower shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure20 psi
Track Gauge8 in
Number of Track Rollers per Side8
Standard Shoe Size24 in
Ground Contact Area7,321 in³

Standard Blade

Standard Blade specifications
Width207 in
Height84 in
Capacity28.80 yd³
