Caterpillar

D250B

Off-Highway Truck

Max Speed
31.7 mph
Gross Power
218.6 hp
All off-highway trucks

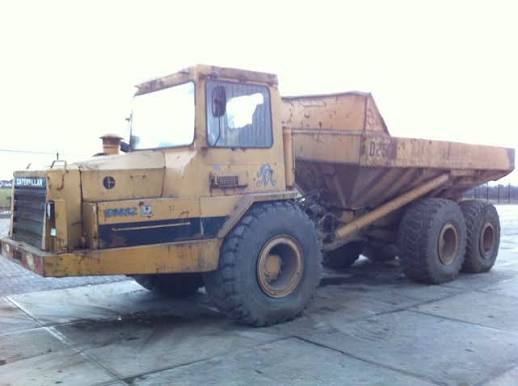

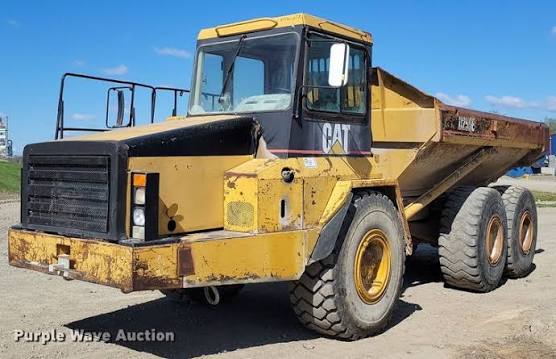

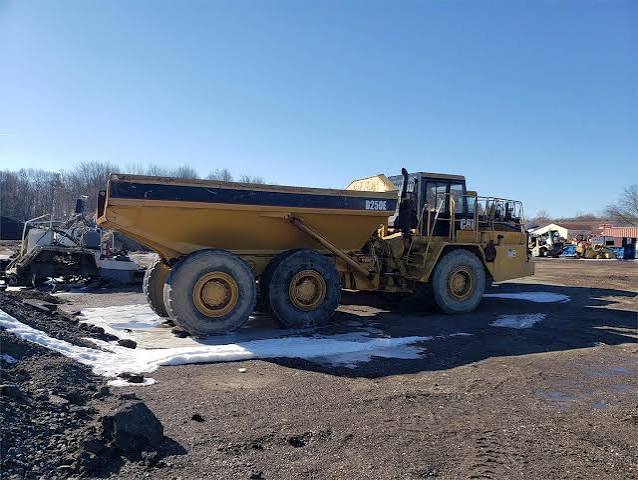

Caterpillar D250B Off-Highway Truck
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Tire Size20.5x25 radials

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Gross Power218.6 hp

Weights

Weights specifications
Total Empty39,602 lb
Front Axle - empty22,176 lb
Total Loaded89,603 lb
Rear Axle - empty8,713 lb
Front Axle - loaded28,673 lb
Rear Axle - loaded30,466 lb
Center Axle - empty8,713 lb
Center Axle - loaded30,466 lb

Dimensions

Dimensions specifications
Wheelbase224 in
Overall Length378 in
Overall Width100 in
Overall Height126 in
Dump Height246 in

Transmission

Transmission specifications
Max Speed31.7 mph
Number of Forward Gears5

Dump

Dump specifications
Rated Payload50,001 lb
Capacity - Heaped18.40 yd³
Capacity - Struck14.40 yd³
