Caterpillar
Volvo
A35E

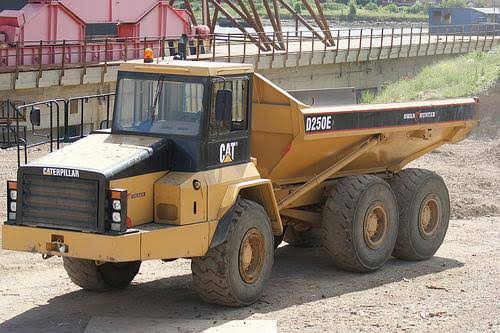

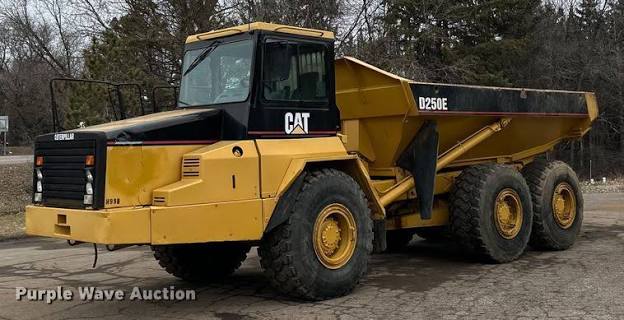

Off-Highway Truck
44 specifications
1 / 5
Image 1 of 5
Specifications
30 data points
Engine
| Engine Model | 3306 |
|---|---|
| Gross Power | 260.0 hp |
| Flywheel Power | 260.0 hp |
Weights
| Total Empty | 44,397 lb |
|---|
Dimensions
| Overall Length | 393 in |
|---|---|
| Overall Width | 108 in |
| Overall Height | 132 in |
| Dump Height | 245 in |
Transmission
| Forward - 1 | 3.9 mph |
|---|---|
| Forward - 2 | 6.7 mph |
| Forward - 3 | 11.0 mph |
| Forward - 4 | 19.2 mph |
| Forward - 5 | 31.7 mph |
| Reverse - 1 | 4.1 mph |
| Reverse - 2 | 11.5 mph |
Service Refill Capacities
| Cooling System | 16.7 gal |
|---|---|
| Fuel Tank | 95.1 gal |
| Engine Crankcase | 7.4 gal |
| Hydraulic System | 52.9 gal |
| Transmission | 15.9 gal |
Dump
| Rated Payload | 50,045 lb |
|---|---|
| Dump Angle | 55 ° |
Operating Weights
| Total - Empty | 44,390 lb |
|---|
Body
| Plate thickness-Front | 0 in |
|---|
Body Plate Thickness
| Base | 1 in |
|---|---|
| Side | 1 in |
Body Capacities
| Heaped (SAE 2:1) | 18.00 yd³ |
|---|---|
| Struck | 13.80 yd³ |
Body Hoist
| Lower Time | 7.0 s |
|---|---|
| Raise Time | 10.0 s |
