Caterpillar

D300B

Off-Highway Truck

Max Speed
34.8 mph
Gross Power
260.2 hp
All off-highway trucks

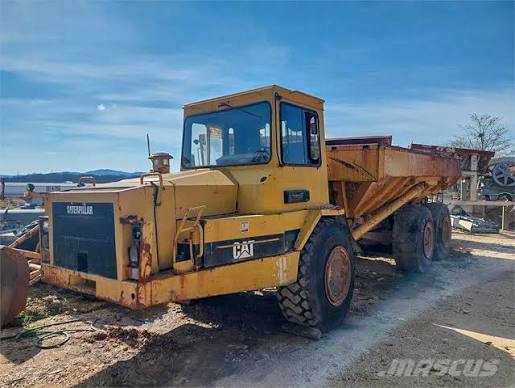

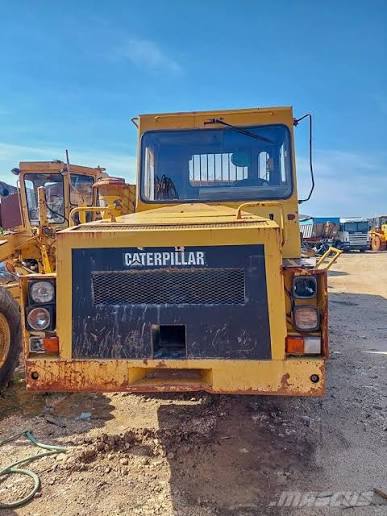

Caterpillar D300B Off-Highway Truck
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Tire Size23.5x25 Radials

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Gross Power260.2 hp

Weights

Weights specifications
Total Empty43,652 lb
Front Axle - empty24,445 lb
Total Loaded103,750 lb
Rear Axle - empty9,603 lb
Front Axle - loaded32,163 lb
Rear Axle - loaded35,794 lb
Center Axle - empty9,603 lb
Center Axle - loaded35,794 lb

Dimensions

Dimensions specifications
Wheelbase228 in
Overall Length380 in
Overall Width108 in
Overall Height127 in
Dump Height247 in

Transmission

Transmission specifications
Max Speed34.8 mph
Number of Forward Gears5

Dump

Dump specifications
Rated Payload147,401 lb
Capacity - Heaped22.30 yd³
Capacity - Struck17.09 yd³
