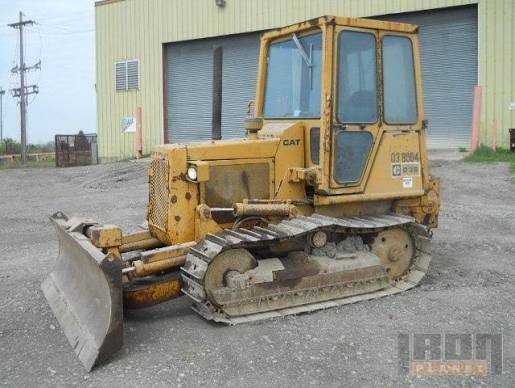

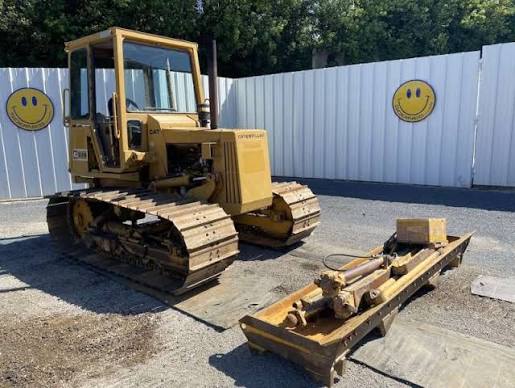

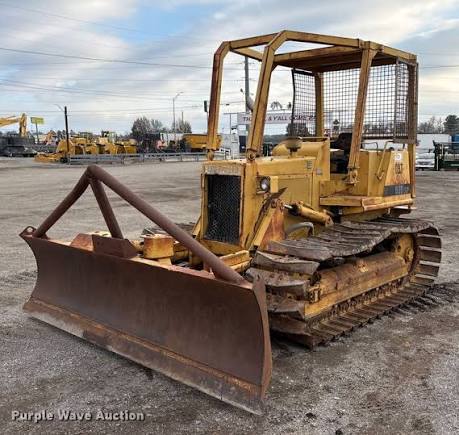

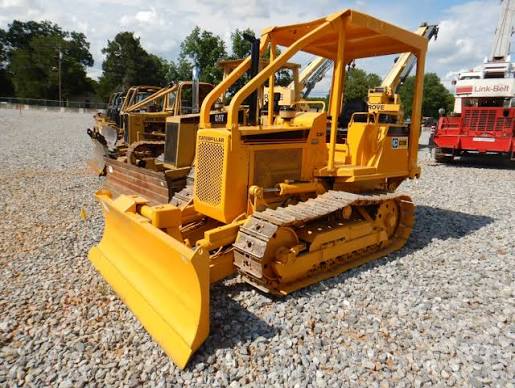

CaterpillarCaterpillar
D3K LGP
Crawler Dozer
35 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 15,161 lb |
|---|---|
| Fuel Capacity | 30.2 gal |
| Cooling System Fluid Capacity | 5.3 gal |
| Final Drives Fluid Capacity | 2.2 gal |
| Engine Oil Capacity | 3.2 gal |
| Hydraulic Fluid Capacity | 18.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | 3204 |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 65.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Naturally |
Hydraulic System
| Pump Flow Capacity | 14.6 gal/min |
|---|---|
| Relief Valve Pressure | 2,500 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 106 in |
| Length of Track on Ground | 72 in |
| Width Over Tracks | 71 in |
| Length w/ Blade | 145 in |
| Length w/o Blade | 109 in |
Transmission
| Max Speed - Forward | 6.6 mph |
|---|---|
| Max Speed - Reverse | 7.1 mph |
| Transmission Type | Planetary Powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Track Gauge | 56 in |
|---|---|
| Number of Track Rollers per Side | 5 |
| Number of Shoes per Side | 36 |
| Standard Shoe Size | 12 in |
| Ground Contact Area | 1,721 in³ |
Standard Blade
| Width | 96 in |
|---|---|
| Height | 33 in |
| Capacity | 1.70 yd³ |
| Blade Angle (both directions) | 25 ° |
