Caterpillar

D3C II

Crawler Dozer

Operating Weight
15,435 lb
Max Speed - Forward
6.7 mph
Gross Power
76.0 hp
Net Power
70.0 hp
All crawler dozers

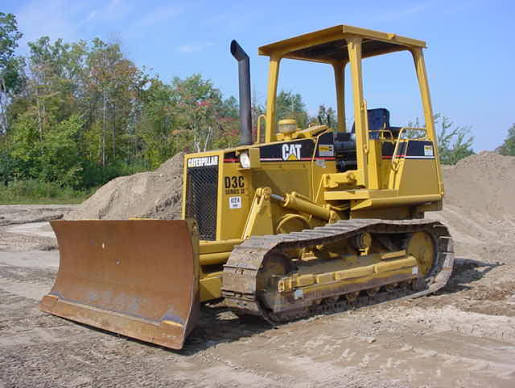

Caterpillar D3C II Crawler Dozer
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,435 lb
Fuel Capacity32.0 gal
Cooling System Fluid Capacity5.3 gal
Final Drives Fluid Capacity2.2 gal
Engine Oil Capacity3.2 gal
Hydraulic Fluid Capacity15.1 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine Model3204
Displacement317 in³
Power Measured @2,400 rpm
Gross Power76.0 hp
Net Power70.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.6 gal/min
Relief Valve Pressure2,500 psi
Pump TypeSingle-section gear pump

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab106 in
Length of Track on Ground76 in
Width Over Tracks71 in
Length w/ Blade148 in
Length w/o Blade109 in

Transmission

Transmission specifications
Max Speed - Forward6.7 mph
Max Speed - Reverse7.1 mph
Transmission Typeplanetary power shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge56 in
Number of Track Rollers per Side5
Number of Shoes per Side37
Standard Shoe Size14 in
Ground Contact Area2,093 in³

Standard Blade

Standard Blade specifications
Width96 in
Height33 in
Capacity1.70 yd³
Blade Angle (both directions)25 °
