Caterpillar

D400D

Off-Highway Truck

Max Speed
34.5 mph
Gross Power
385.0 hp
All off-highway trucks

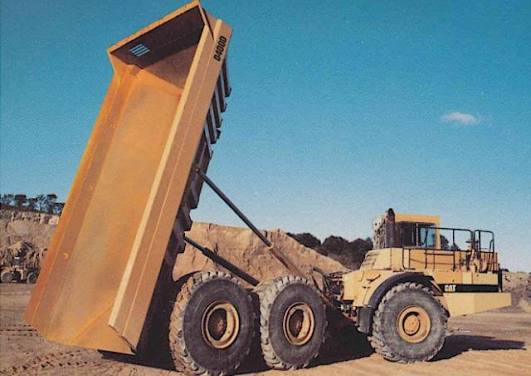

Caterpillar D400D Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity118.9 gal
Tire Size29.5x25 Radials

Engine

Engine specifications
Engine Model3406
Displacement891 in³
Gross Power385.0 hp

Weights

Weights specifications
Total Empty61,789 lb
Front Axle - empty36,451 lb
Total Loaded141,775 lb
Rear Axle - empty12,666 lb
Front Axle - loaded48,204 lb
Rear Axle - loaded46,787 lb
Center Axle - empty12,666 lb
Center Axle - loaded46,787 lb

Dimensions

Dimensions specifications
Wheelbase239 in
Overall Length419 in
Overall Width131 in
Overall Height141 in
Dump Height265 in

Transmission

Transmission specifications
Max Speed34.5 mph
Number of Forward Gears4

Dump

Dump specifications
Rated Payload79,986 lb
Capacity - Heaped30.80 yd³
Capacity - Struck22.69 yd³
