Caterpillar

D4C XL III

Crawler Dozer

Operating Weight
16,442 lb
Max Speed - Forward
6.9 mph
Gross Power
88.0 hp
Net Power
81.0 hp
All crawler dozers

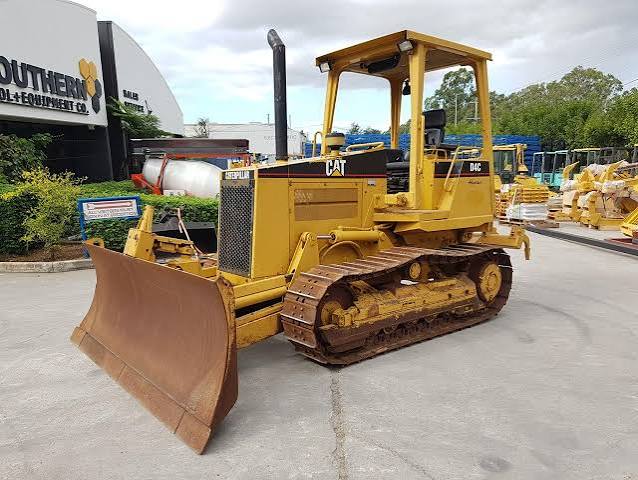

Caterpillar D4C XL III Crawler Dozer
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,442 lb
Fuel Capacity41.5 gal
Cooling System Fluid Capacity5.6 gal
Final Drives Fluid Capacity3.9 gal
Engine Oil Capacity3.5 gal
Hydraulic Fluid Capacity15.1 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelCat 3046
Displacement305 in³
Power Measured @2,400 rpm
Gross Power88.0 hp
Net Power81.0 hp
Number of Cylinders6
AspirationNatural

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.6 gal/min
Relief Valve Pressure2,500 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab108 in
Length of Track on Ground88 in
Width Over Tracks78 in
Length w/ Blade158 in
Length w/o Blade120 in

Transmission

Transmission specifications
Max Speed - Forward6.9 mph
Max Speed - Reverse7.4 mph
Transmission TypePower Shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge60 in
Number of Track Rollers per Side7
Number of Shoes per Side41
Standard Shoe Size18 in
Ground Contact Area3,131 in³

Standard Blade

Standard Blade specifications
Width108 in
Height37 in
Capacity2.20 yd³
Blade Angle (both directions)25 °
