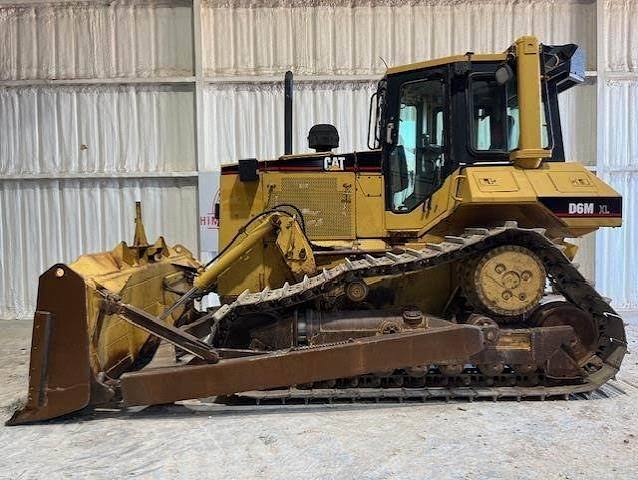

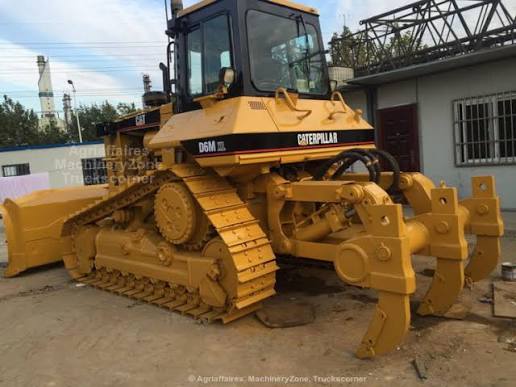

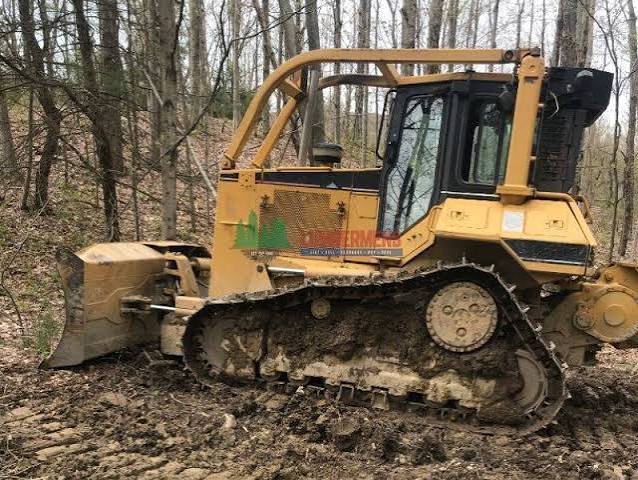

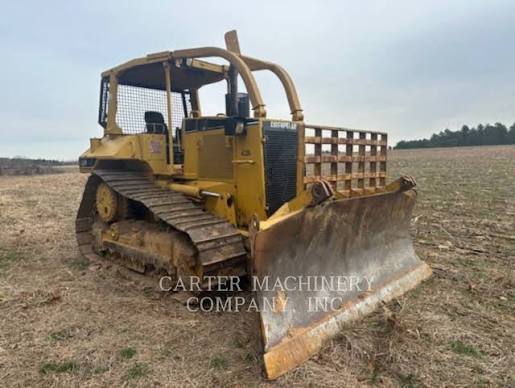

Caterpillar
D6M XL
- Operating Weight
- 33,200 lb
- Max Speed - Forward
- 6.4 mph
- Gross Power
- 153.0 hp
- Net Power
- 140.0 hp
1 / 5
Image 1 of 5
Specifications
66 data points
Operating Specifications
| Operating Weight | 33,200 lb |
|---|---|
| Fuel Capacity | 82.2 gal |
| Cooling System Fluid Capacity | 12.8 gal |
| Final Drives Fluid Capacity | 1.9 gal |
| Engine Oil Capacity | 6.9 gal |
| Hydraulic Fluid Capacity | 7.8 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | 3116 T |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 153.0 hp |
| Net Power | 140.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Flywheel Power | 140.0 hp |
| Maximum Flywheel Power | 153.0 hp |
Hydraulic System
| Pump Flow Capacity | 31.5 gal/min |
|---|---|
| Relief Valve Pressure | 3,600 psi |
| Pump Type | Piston |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 122 in |
| Length of Track on Ground | 101 in |
| Width Over Tracks | 98 in |
| Length w/ Blade | 190 in |
| Length w/o Blade | 148 in |
Transmission
| Max Speed - Forward | 6.4 mph |
|---|---|
| Max Speed - Reverse | 7.9 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| 2 Forward | 3.8 mph |
| 3 Forward | 6.4 mph |
| 2 Reverse | 4.7 mph |
| 3 Reverse | 8.0 mph |
| 1 Forward | 2.2 mph |
| 1 Reverse | 2.7 mph |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 74 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 40 |
| Standard Shoe Size | 24 in |
| Ground Contact Area | 4,743 in³ |
| Ground Clearance | 2 in |
Service Refill Capacities
| Fuel Tank | 82.2 gal |
|---|---|
| Cooling System | 12.7 gal |
| Final Drive - Each | 1.9 gal |
| Hydraulic Tank | 7.7 gal |
| Engine Crankcase | 6.9 gal |
| Power Train | 32.3 gal |
Standard Blade
| Width | 130 in |
|---|---|
| Height | 47 in |
| Capacity | 4.20 yd³ |
Ripper
| Ripper Type | Parallelogram |
|---|---|
| Number of Pockets | 3 |
| Overall Beam Width | 87 in |
| Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | 16 in |
| Maximum Penetration | 19 in |
Winch
| Drum Diameter | 10 in |
|---|---|
| Drum Width | 13 in |
| Weight | 2,813 lb |
| Flange Diameter | 20 in |
| Oil Capacity | 19.6 gal |
| Winch and Bracket Length | 44 in |
| Winch Case - Width | 38 in |
| Increased Tractor Length - STD | 15 in |
