D150
Crawler Dozer
40 specifications
1 / 5

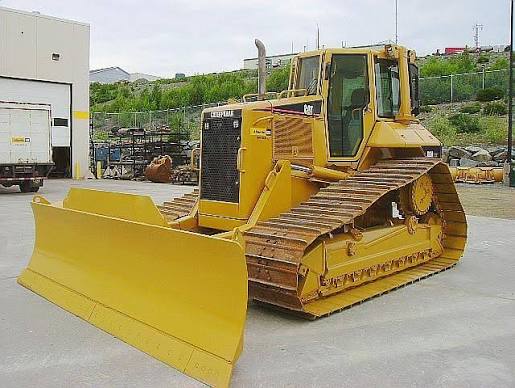

Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 34,361 lb |
|---|---|
| Fuel Capacity | 79.0 gal |
| Cooling System Fluid Capacity | 10.8 gal |
| Final Drives Fluid Capacity | 1.9 gal |
| Hydraulic Fluid Capacity | 7.8 gal |
Engine
| Engine Model | Cat C7.1 ACERT |
|---|---|
| Displacement | 433 in³ |
| Net Power | 145.0 hp |
| Stroke | 5 in |
| Bore | 4 in |
| Flywheel Power | 166.0 hp |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 122 in |
| Length of Track on Ground | 101 in |
| Width Over Tracks | 98 in |
Transmission
| Max Speed - Forward | 6.3 mph |
|---|---|
| Max Speed - Reverse | 7.4 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| 2 Forward | 3.6 mph |
| 3 Forward | 6.1 mph |
| 2 Reverse | 4.4 mph |
| 3 Reverse | 7.6 mph |
| 1 Forward | 2.1 mph |
| 1 Reverse | 2.5 mph |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 76 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 40 |
| Ground Contact Area | 4,822 in³ |
Service Refill Capacities
| Fuel Tank | 73.2 gal |
|---|---|
| Cooling System | 10.6 gal |
| Final Drive - Each | 1.8 gal |
| Hydraulic Tank | 7.8 gal |
| Engine Crankcase | 4.5 gal |
| Power Train | 42.3 gal |
| DEF Tank | 5.0 gal |
Standard Blade
| Width | 130 in |
|---|---|
| Height | 47 in |
| Capacity | 4.20 yd³ |
Standards
| FOPS | FOPS (Falling Object Protective Structure) meets ISO 3449-2005 Level II. |
|---|---|
| ROPS | ROPS (Rollover Protective Structure) offered by Caterpillar for the machine meets ROPS criteria ISO 3471:2008. |
| Brakes | Brakes meet the standard ISO 10265:2008. |
Ripper
| Ripper Type | Fixed Parallelogram |
|---|---|
| Number of Pockets | 3 |
| Overall Beam Width | 87 in |
| Beam Cross Section | 216 mm 254 mm (8.5 in 10.0 in) |
Winch
| Drum Diameter | 10 in |
|---|---|
| Drum Width | 12 in |
| Weight | 2,814 lb |
| Flange Diameter | 20 in |
| Oil Capacity | 19.6 gal |
| Winch and Bracket Length | 45 in |
| Winch Case - Width | 38 in |
| Drum Capacity - 22 mm (0.88 in) | 3,466 in |
Hydraulic Controls - Pump
| Ripper Cylinder Flow | 33.5 gal/min |
|---|---|
| Tilt Cylinder Flow | 23.8 gal/min |
