Caterpillar

D6R LGP

Crawler Dozer

Operating Weight
45,200 lb
Max Speed - Forward
7.4 mph
Gross Power
199.0 hp
Net Power
185.0 hp
All crawler dozers

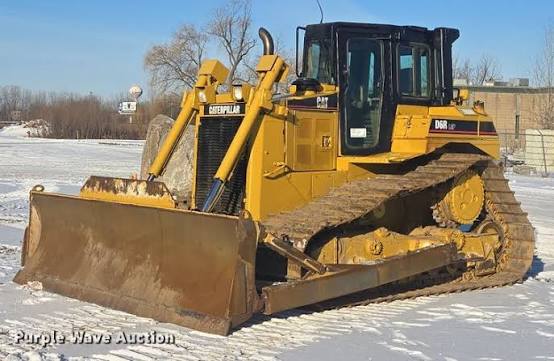

Caterpillar D6R LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: cjleonard.co.uk

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,200 lb
Fuel Capacity101.2 gal
Cooling System Fluid Capacity19.6 gal
Final Drives Fluid Capacity3.6 gal
Engine Oil Capacity7.3 gal
Hydraulic Fluid Capacity20.1 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model3306
Displacement638 in³
Power Measured @1,900 rpm
Gross Power199.0 hp
Net Power185.0 hp
Number of Cylinders6
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity50.2 gal/min
Relief Valve Pressure2,800 psi
Pump TypePiston Style

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab128 in
Length of Track on Ground128 in
Width Over Tracks125 in
Length w/ Blade216 in
Length w/o Blade168 in

Transmission

Transmission specifications
Max Speed - Forward7.4 mph
Max Speed - Reverse9.5 mph
Transmission TypePower Shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge88 in
Number of Track Rollers per Side8
Number of Shoes per Side45
Standard Shoe Size36 in
Ground Contact Area9,961 in³
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width157 in
Height43 in
Capacity4.90 yd³
