Caterpillar

D6R LGP II

Crawler Dozer

Operating Weight
45,086 lb
Max Speed - Forward
7.7 mph
Gross Power
185.0 hp
All crawler dozers

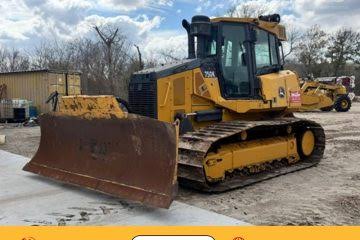

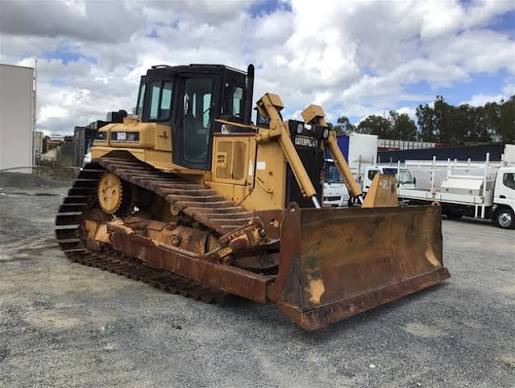

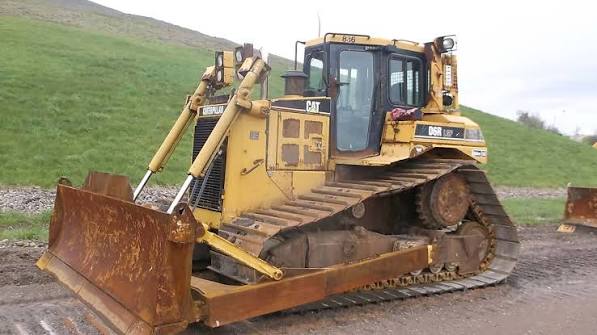

Caterpillar D6R LGP II Crawler Dozer
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,086 lb
Fuel Capacity101.0 gal

Engine

Engine specifications
Engine ModelC9
Displacement537 in³
Power Measured @2,000 rpm
Gross Power185.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab128 in
Length of Track on Ground128 in
Width Over Tracks125 in
Length w/ Blade216 in
Length w/o Blade168 in

Transmission

Transmission specifications
Max Speed - Forward7.7 mph
Max Speed - Reverse10.0 mph
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge89 in
Number of Track Rollers per Side8
Standard Shoe Size36 in
Ground Contact Area9,254 in³

Standard Blade

Standard Blade specifications
Width157 in
Height43 in
Capacity4.90 yd³
