Caterpillar

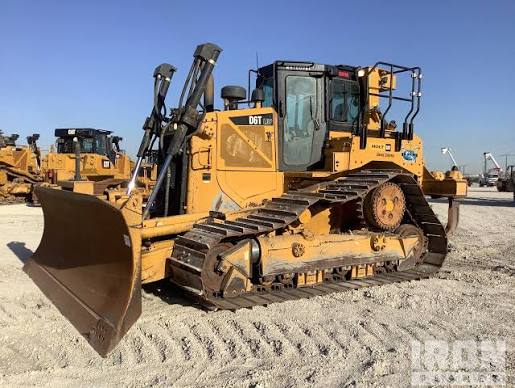

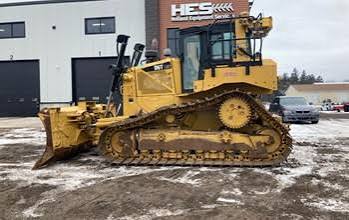

D6T LGP
- Operating Weight
- 50,968 lb
- Max Speed - Forward
- 7.2 mph
- Gross Power
- 228.0 hp
- Net Power
- 200.0 hp
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 50,968 lb |
|---|---|
| Fuel Capacity | 112.0 gal |
| Cooling System Fluid Capacity | 18.5 gal |
| Final Drives Fluid Capacity | 3.6 gal |
| Engine Oil Capacity | 7.4 gal |
| Hydraulic Fluid Capacity | 13.6 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 95 A |
Engine
| Engine Model | C9 ACERT |
|---|---|
| Displacement | 537 in³ |
| Gross Power | 228.0 hp |
| Net Power | 200.0 hp |
| Make | Cat |
Hydraulic System
| Pump Flow Capacity | 49.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,126 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 128 in |
| Length of Track on Ground | 130 in |
| Width Over Tracks | 125 in |
| Length w/o Blade | 168 in |
Transmission
| Max Speed - Forward | 7.2 mph |
|---|---|
| Max Speed - Reverse | 9.1 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 45 |
| Standard Shoe Size | 31 in |
| Ground Contact Area | 7,998 in³ |
| Track Pitch | 8 in |
General Specifications
| Weight lbs (kg) | 54,526 (24,733) Starting 2018 Model Year |
|---|---|
| Engine type | Cat C9.3 ACERT Starting 2018 Model Year |
| Engine Power HP (KW) | 215 (160) Starting 2018 Model Year |
Standard Blade
| Width | 161 in |
|---|---|
| Height | 47 in |
| Capacity | 4.90 yd³ |
