Caterpillar

E240B

Excavator

Operating Weight
50,706 lb
Max Digging Depth
241 in
Max Digging Depth
265 in
Net Power
148.0 hp
All excavators

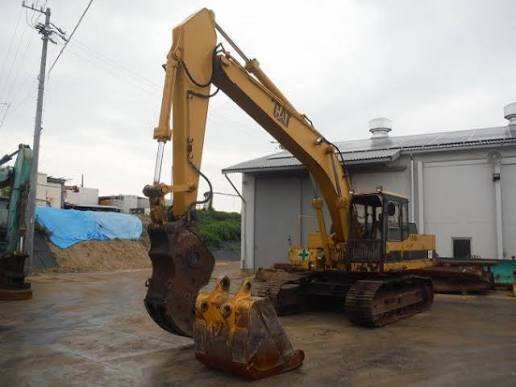

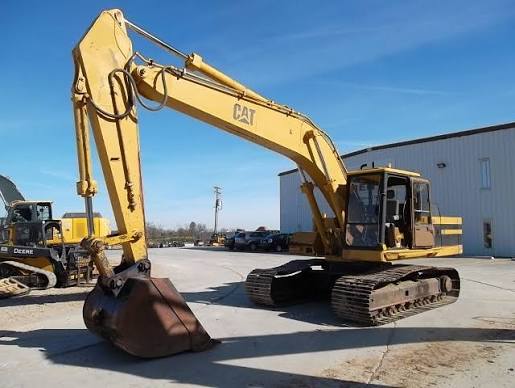

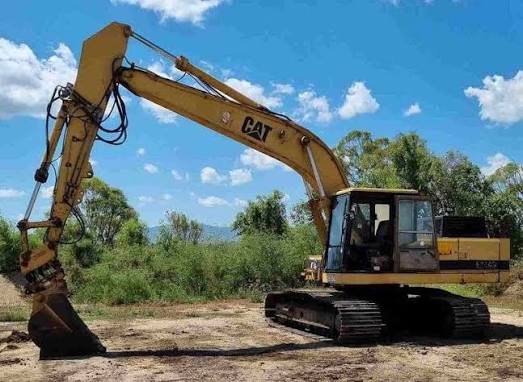

Caterpillar E240B Excavator
1 / 5
Image 1 of 5
Image: made-in-china.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,706 lb
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity121.6 gal/min
Hydraulic System Fluid Capacity79.3 gal
Hydraulic System Relief Valve Pressure3,983 psi
Engine Oil Capacity4.0 gal
Cooling System Fluid Capacity7.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.6 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model3116
Displacement403 in³
Power Measured @2,200 rpm
Net Power148.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Length of Track on Ground132 in
Tail Swing Radius115 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge95 in
Number of Track Rollers per Side7
Max Travel Speed2.3 mph
Shoe Size32 in
Number of Shoes per Side46
Drawbar Pull37,180 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth241 in
Max Reach Along Ground371 in
Max Loading Height248 in
Max Vertical Wall Digging Depth199 in
Max Cutting Height362 in
Shipping Length of Unit384 in
Shipping Height of Unit120 in

Bucket

Bucket specifications
Reference Bucket Capacity1.29 yd³
Maximum Bucket Capacity2.39 yd³
Minimum Bucket Capacity0.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth265 in
Max Vertical Wall Digging Depth233 in
Max Cutting Height378 in
Max Loading Height261 in
Max Reach Along Ground395 in
Shipping Length of Unit384 in
Shipping Height of Unit120 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth293 in
Max Cutting Height384 in
Max Loading Height268 in
Max Vertical Wall Digging Depth258 in
Max Reach Along Ground418 in
