Hitachi

ZX135USK Demo

Excavator

Operating Weight
30,440 lb
Max Digging Depth
219 in
Net Power
88.0 hp
All excavators

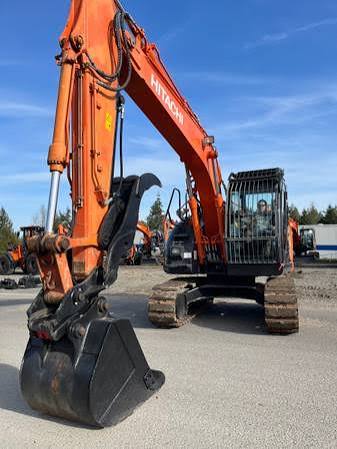

Hitachi ZX135USK Demo Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,440 lb
Fuel Capacity53.1 gal
Hydraulic Pump Flow Capacity55.5 gal/min
Hydraulic System Fluid Capacity31.8 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity3.5 gal
Cooling System Fluid Capacity3.8 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.7 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelCC-4BG1TC
Displacement264 in³
Power Measured @2,150 rpm
Net Power88.0 hp
AspirationTurbocharged intercooled
Torque Measured @1,600 rpm
Max Torque251 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab108 in
Length of Track on Ground114 in
Tail Swing Radius59 in
Width to Outside of Tracks107 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Number of Track Rollers per Side7
Max Travel Speed3.2 mph
Shoe Size28 in
Number of Shoes per Side44
Number of Carrier Rollers per Side1
Drawbar Pull26,300 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground322 in
Max Loading Height267 in
Max Vertical Wall Digging Depth197 in
Max Cutting Height364 in
Shipping Length of Unit288 in
Shipping Height of Unit113 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity0.80 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm
