Caterpillar

EL200B

Excavator

Operating Weight
44,313 lb
Max Digging Depth
224 in
Max Digging Depth
245 in
Net Power
118.0 hp
All excavators

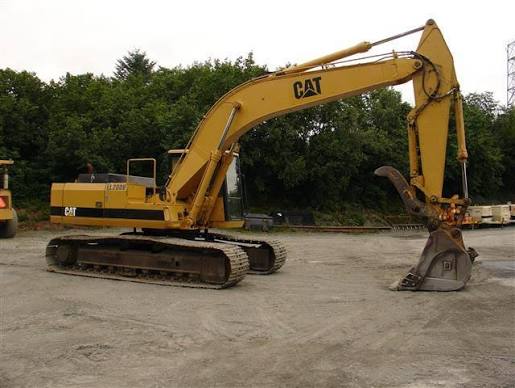

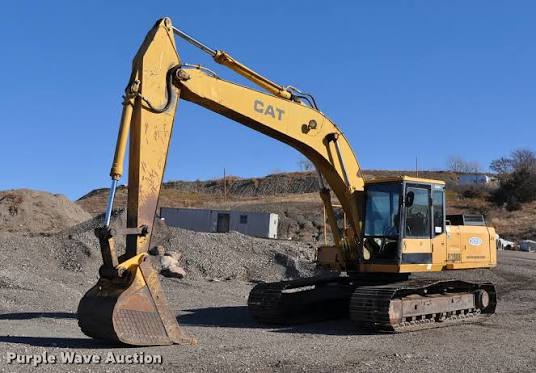

Caterpillar EL200B Excavator
1 / 5
Image 1 of 5
Image: parts.cat.com

Specifications

55 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,313 lb
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity94.1 gal/min
Hydraulic System Fluid Capacity66.1 gal
Hydraulic System Relief Valve Pressure4,550 psi
Engine Oil Capacity4.0 gal
Cooling System Fluid Capacity6.1 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model3116
Displacement403 in³
Power Measured @1,800 rpm
Net Power118.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab111 in
Tail Swing Radius109 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge95 in
Number of Track Rollers per Side8
Max Travel Speed3.2 mph
Shoe Size32 in
Number of Shoes per Side49
Drawbar Pull38,100 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth224 in
Max Reach Along Ground349 in
Max Loading Height239 in
Max Vertical Wall Digging Depth191 in
Max Cutting Height350 in
Shipping Length of Unit383 in
Shipping Height of Unit119 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity1.40 yd³
Minimum Bucket Capacity0.50 yd³

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth245 in
Max Vertical Wall Digging Depth209 in
Max Cutting Height361 in
Max Loading Height257 in
Max Reach Along Ground370 in
Shipping Length of Unit376 in
Shipping Height of Unit119 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth265 in
Max Cutting Height372 in
Max Loading Height264 in
Max Vertical Wall Digging Depth240 in
Max Reach Along Ground389 in
Shipping Length of Unit374 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth300 in
Max Cutting Height380 in
Max Reach Along Ground419 in
Max Loading Height274 in
Max Vertical Wall Dig Depth265 in
Shipping Length of Unit374 in
