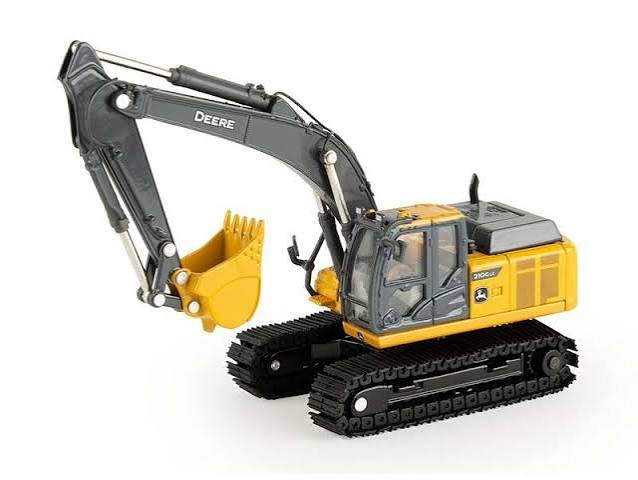

John DeereJohn Deere
210G LC
Excavator
36 specifications
John Deere
490E
- Operating Weight
- 26,780 lb
- Max Digging Depth
- 220 in
- Max Digging Depth
- 240 in
- Net Power
- 85.0 hp
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 26,780 lb |
|---|---|
| Fuel Capacity | 66.0 gal |
| Hydraulic Pump Flow Capacity | 52.3 gal/min |
| Hydraulic System Fluid Capacity | 35.4 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 4045T |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 90.0 hp |
| Net Power | 85.0 hp |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 252 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 107 in |
| Length of Track on Ground | 114 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 107 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 28 in |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 21,200 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 220 in |
|---|---|
| Max Reach Along Ground | 320 in |
| Max Loading Height | 241 in |
| Max Vertical Wall Digging Depth | 197 in |
| Max Cutting Height | 336 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 107 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 240 in |
|---|---|
| Max Vertical Wall Digging Depth | 216 in |
| Max Cutting Height | 348 in |
| Max Loading Height | 254 in |
| Max Reach Along Ground | 340 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 107 in |
