Hitachi

ZX70LC

Excavator

Operating Weight
16,248 lb
Max Digging Depth
165 in
Max Digging Depth
185 in
Net Power
52.0 hp
All excavators

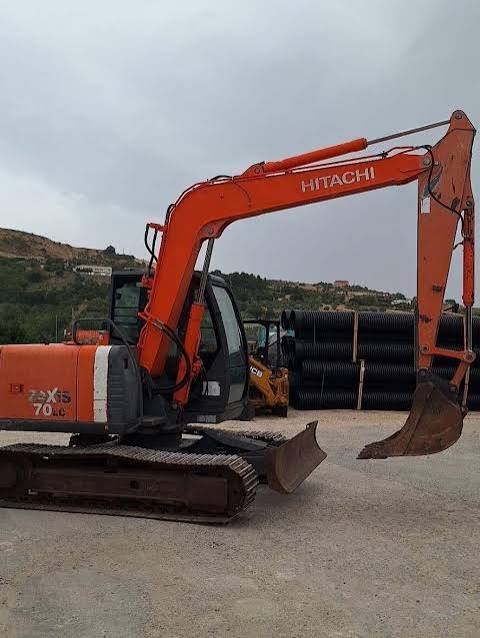

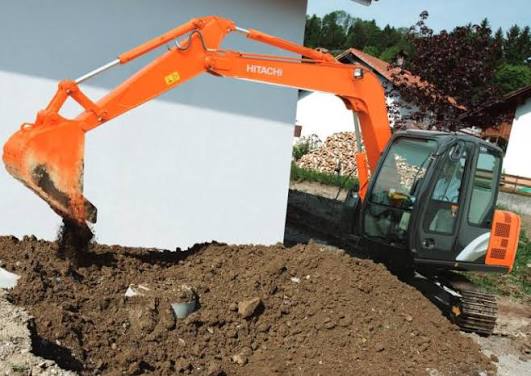

Hitachi ZX70LC Excavator
1 / 5
Image 1 of 5
Image: diggerbidder.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,248 lb
Fuel Capacity35.7 gal
Hydraulic Pump Flow Capacity47.2 gal/min
Hydraulic System Fluid Capacity26.5 gal
Hydraulic System Relief Valve Pressure4,554 psi
Engine Oil Capacity3.2 gal
Cooling System Fluid Capacity2.6 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelCC-4JG1
Displacement187 in³
Power Measured @2,100 rpm
Net Power52.0 hp
Number of Cylinders4
Torque Measured @1,800 rpm
Max Torque142 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab103 in
Tail Swing Radius70 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge74 in
Number of Track Rollers per Side5
Max Travel Speed3.1 mph
Shoe Size18 in
Number of Shoes per Side40
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth165 in
Max Reach Along Ground244 in
Max Loading Height200 in
Max Vertical Wall Digging Depth148 in
Max Cutting Height282 in
Shipping Length of Unit240 in
Shipping Height of Unit103 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth185 in
Max Vertical Wall Digging Depth169 in
Max Cutting Height298 in
Max Loading Height215 in
Max Reach Along Ground263 in
Shipping Length of Unit241 in
Shipping Height of Unit114 in
