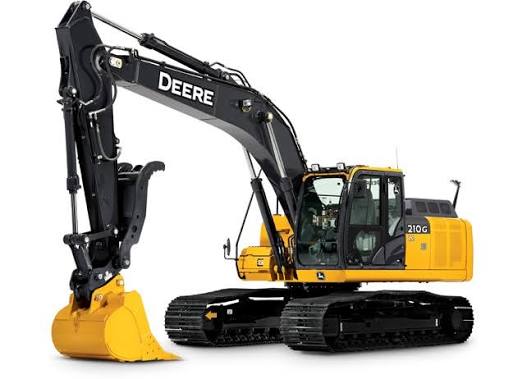

John Deere
210G LC
- Operating Weight
- 16,171 lb
- Max Digging Depth
- 244 in
- Max Digging Depth
- 263 in
- Net Power
- 159.6 hp
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 16,171 lb |
|---|---|
| Fuel Capacity | 106.5 gal |
| Hydraulic Pump Flow Capacity | 112.0 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Engine Oil Capacity | 5.5 gal |
| Cooling System Fluid Capacity | 9.4 gal |
Engine
| Engine Model | PVS 6.8L 6068HT106 |
|---|---|
| Displacement | 415 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 159.6 hp |
| Aspiration | Turbocharged |
| Engine Make | John Deere |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 126 in |
| Length of Track on Ground | 384 in |
| Tail Swing Radius | 114 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 45,636 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 244 in |
|---|---|
| Max Reach Along Ground | 365 in |
| Max Loading Height | 270 in |
| Max Vertical Wall Digging Depth | 209 in |
| Max Cutting Height | 381 in |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 263 in |
|---|---|
| Max Vertical Wall Digging Depth | 236 in |
| Max Cutting Height | 396 in |
| Max Loading Height | 283 in |
| Max Reach Along Ground | 384 in |
