Caterpillar

IT14B

Wheel Loader

Operating Weight
18,371 lb
Bucket Capacity - heaped
1.60 yd³
Gross Power
85.0 hp
All wheel loaders

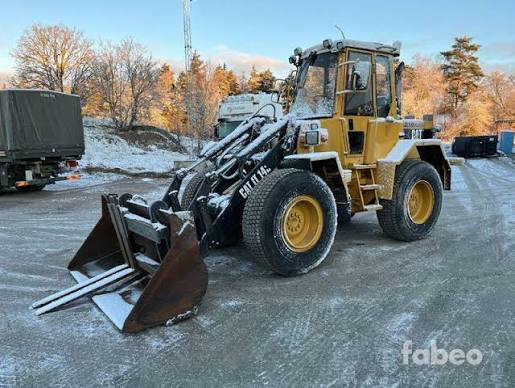

Caterpillar IT14B Wheel Loader
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,371 lb
Tire Size15.5-25
Turning Radius214 in
Static Tipping Load - Bucket11,087 lb
Static Tipping Load - Forks8,763 lb
Static Tipping Load - Material Handler4,954 lb

Engine

Engine specifications
Engine Model3114
Displacement269 in³
Gross Power85.0 hp

Hydraulic System

Hydraulic System specifications
Raise Time6.6 s
Lower Time3.0 s
Dump Time1.6 s

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab119 in
Wheelbase101 in
Hinge Pin - Max Height143 in
Length w/ Bucket on Ground254 in
Dump Clearance at Max Lift108 in
Reach at Max Height and Dump37 in
Max Lift Height139 in
Fork Tine Length48 in
Length with out Forks on Ground271 in

Transmission

Transmission specifications
Max Speed - Forward23.2 mph
Max Speed - Reverse15.2 mph
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.60 yd³
Bucket Capacity - struck1.40 yd³
Breakout Force16,593 lb
