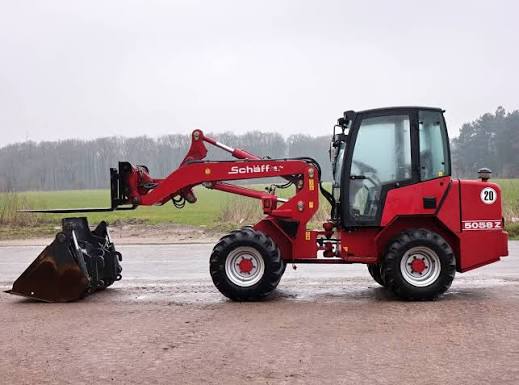

Schaffer
Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 11,023 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| Tire Size | 365X70-18 |
| Hydraulic System Fluid Capacity | 15.9 gal |
| Static Tipping Weight | 6,834 lb |
Engine
| Engine Model | V3300E |
|---|---|
| Gross Power | 70.0 hp |
Hydraulic System
| Pump Flow Capacity | 37.0 gal/min |
|---|---|
| Relief Valve Setting | 5,000 psi |
Dimensions
| Height - Top of Cab | 94 in |
|---|---|
| Wheelbase | 77 in |
| Width Over Tires | 64 in |
| Reach at Max Lift and Dump | 24 in |
| Length with Bucket on Ground | 187 in |
| Hinge Pin - Max Height | 134 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Dump Clearance at Max Raise | 107 in |
| Breakout Force | 6,070 lb |
