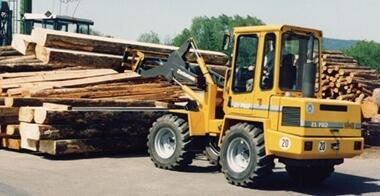

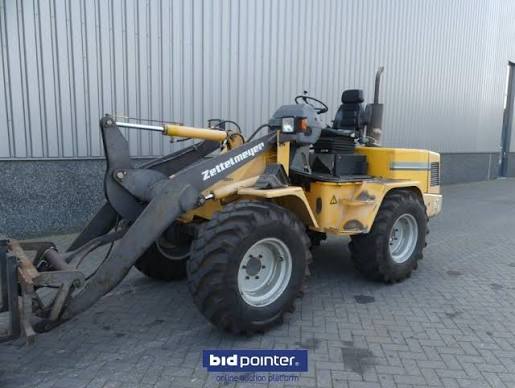

Zettelmeyer
ZL702
- Operating Weight
- 11,023 lb
- Bucket Capacity - heaped
- 1.20 yd³
- Gross Power
- 63.7 hp
- Net Power
- 62.4 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 11,023 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| Tire Size | 405/70 R20 |
| Hydraulic System Fluid Capacity | 15.9 gal |
| Static Tipping Weight | 8,708 lb |
| Operating Voltage | 12 V |
| Turning Radius | 165 in |
| Engine Oil Fluid Capacity | 2.8 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 2.7 gal |
| Rear Axle/Diff Fluid Capacity | 3.0 gal |
Engine
| Engine Model | BF 4L 1011 |
|---|---|
| Displacement | 167 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 63.7 hp |
| Net Power | 62.4 hp |
| Number of Cylinders | 4 |
| Aspiration | turbo + oil/air cooled |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 13.3 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 3,336 psi |
| Pump Type | gear type tandem |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 104 in |
| Wheelbase | 79 in |
| Width Over Tires | 76 in |
| Reach at Max Lift and Dump | 30 in |
| Length with Bucket on Ground | 198 in |
| Hinge Pin - Max Height | 124 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | hydrostatic full powershift |
Bucket
| Bucket Capacity - heaped | 1.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 98 in |
| Breakout Force | 9,217 lb |
| Bucket Width | 76 in |
