Caterpillar

P30000

Forklift

All forklifts

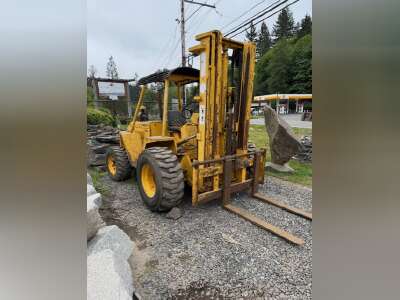

Caterpillar P30000 Forklift
1 / 5
Image 1 of 5
Image: equipmenttrader.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight41,293 lb
Max Speed18.0 mph
Number of Front Wheels4
Number of Rear Wheels2
Tire Typepneumatic

Engine

Engine specifications
Engine Model6M60-TL
Displacement460 in³
Power Measured @2,100 rpm
Number of Cylinders6
Torque Measured @1,600 rpm
Power148.0 hp
Fuel Typediesel
Torque450 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase110 in
Overall Width103 in
Turning Radius165 in
Overall Height - mast lowered138 in
Length to Fork Face179 in
Height to Top of Overhead Guard118 in
Max Fork Height134 in

Mast

Mast specifications
Load Capacity29,763 lb
Load Center24 in
Lift Speed0.9 mph
Mast Tip Forward15 °
Mast Tip Rear12 °
Lower Speed0.9 mph
Max Fork Spread80 in
