Challenger

LB34

Baler

Bale Width
48 in
Overall Width
89 in
Overall Width
118 in
Overall Height
141 in
All balers

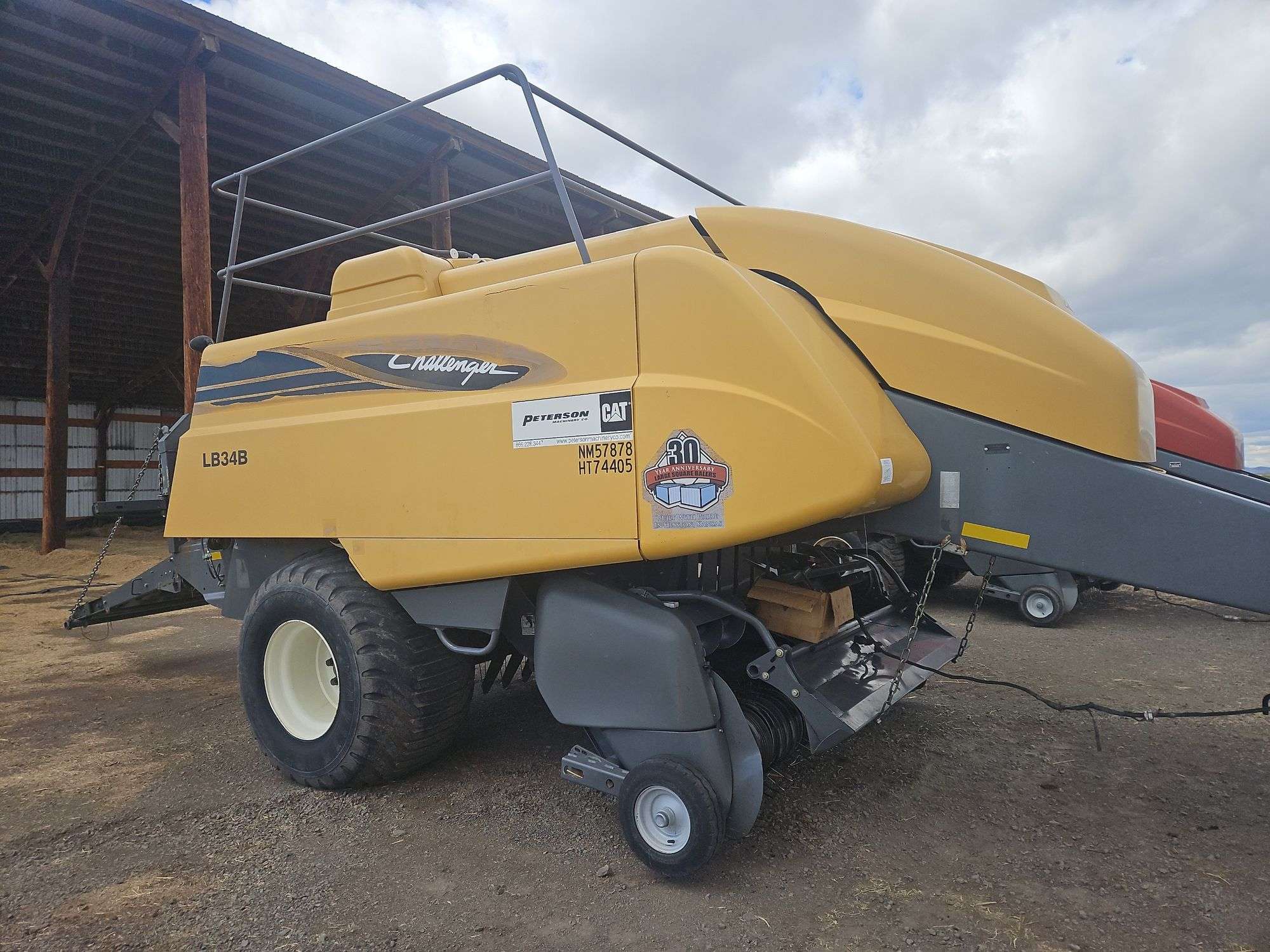

Challenger LB34 Baler
1 / 5
Image 1 of 5
Image: auction.armstrongwestern.com

Specifications

21 data points

Dimensions

Dimensions specifications
Overall Length359 in
Overall Width118 in
Overall Height141 in
Weight19,670 lb
Tractor PTO Power Required120.0 hp

Bale Size

Bale Size specifications
Bale Width48 in
Bale Length - max100 in
Bale Height35 in
Bale Weight - max2,000 lb
Bale Weight - min1,501 lb

Baler Pickup

Baler Pickup specifications
Overall Width89 in
Number of Bars4
Tine to Tine Width81 in
Number of Tines120
Lift TypeHydraulic Cylinder

Feeding Chamber

Feeding Chamber specifications
Packer TypeFork type 6 tine

Plunger

Plunger specifications
SPM43
Stroke Length28 in
Bearing Type4 Sealed Tapered Roller Bearings 2 sealed ball bearing rollers

Wrapping System

Wrapping System specifications
Twine Ball Capacity30
Twine TypeHesston Double Knot Type
