Challenger

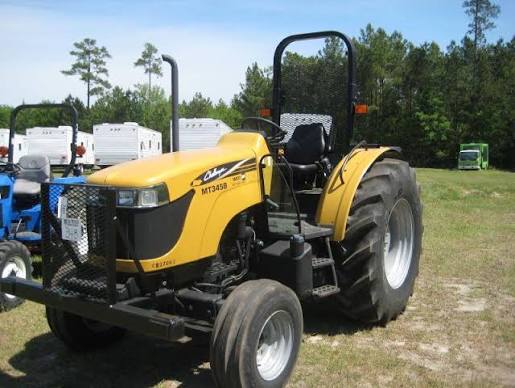

MT345B
- Operating Weight
- 6,614 lb
- Displacement
- 201 in³
- Power Measured @
- 2,150 rpm
- Gross Power
- 91.0 hp
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 6,614 lb |
|---|---|
| Fuel Capacity | 29.0 gal |
| 3 Point Hitch Type | Cat. I/II |
| Alternator Supplied Amperage | 80 A |
| Operating Voltage | 12 V |
Engine
| Displacement | 201 in³ |
|---|---|
| Power Measured @ | 2,150 rpm |
| Gross Power | 91.0 hp |
| Number of Cylinders | 3 |
| Aspiration | Turbo/Aftercooled |
| PTO Power | 75.0 hp |
Hydraulic System
| Pump Flow Capacity | 15.8 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Relief Valve Pressure | 2,755 psi |
Dimensions
| Height - Top of Cab | 42 in |
|---|---|
| Wheelbase | 33 in |
| Overall Length | 5 in |
| Tire Size | 16.9-30(Rear) |
| Width Outside Frame | 77 in |
Transmission
| Max Speed | 18.6 mph |
|---|---|
| Number of Forward Gears | 12 |
| Transmission Type | Synchro Shuttle |
| Number of Reverse Gears | 12 |
