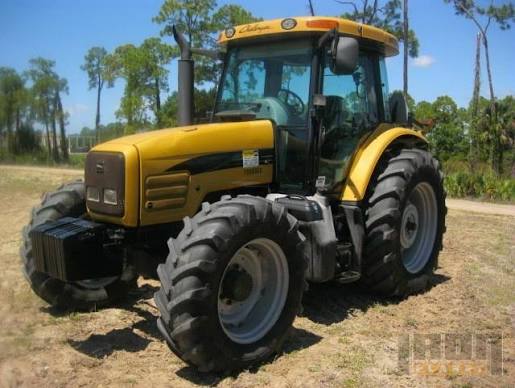

Challenger
Fendt
817
Tractor
23 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 11,052 lb |
|---|---|
| Fuel Capacity | 71.4 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 10,915 lb |
| Alternator Supplied Amperage | 120 A |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 6.8 gal |
| Hydraulic System Fluid Capacity | 18.5 gal |
Engine
| Engine Model | C6.6 ACERT |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and Aftercooled |
| PTO Power | 110.0 hp |
Hydraulic System
| Pump Flow Capacity | 29.1 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Relief Valve Setting | 2,900 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 111 in |
| Overall Length | 15 in |
| Overall Width | 81 in |
| Height - Top of ROPS/FOPS | 113 in |
Transmission
| Max Speed | 25.0 mph |
|---|---|
| Transmission Type | Auto Power |
